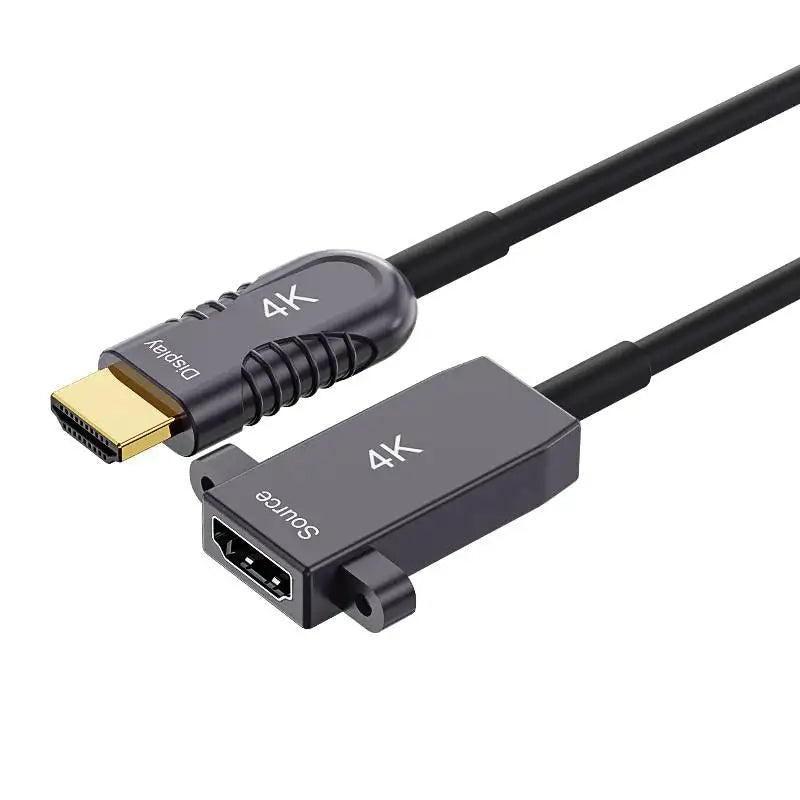

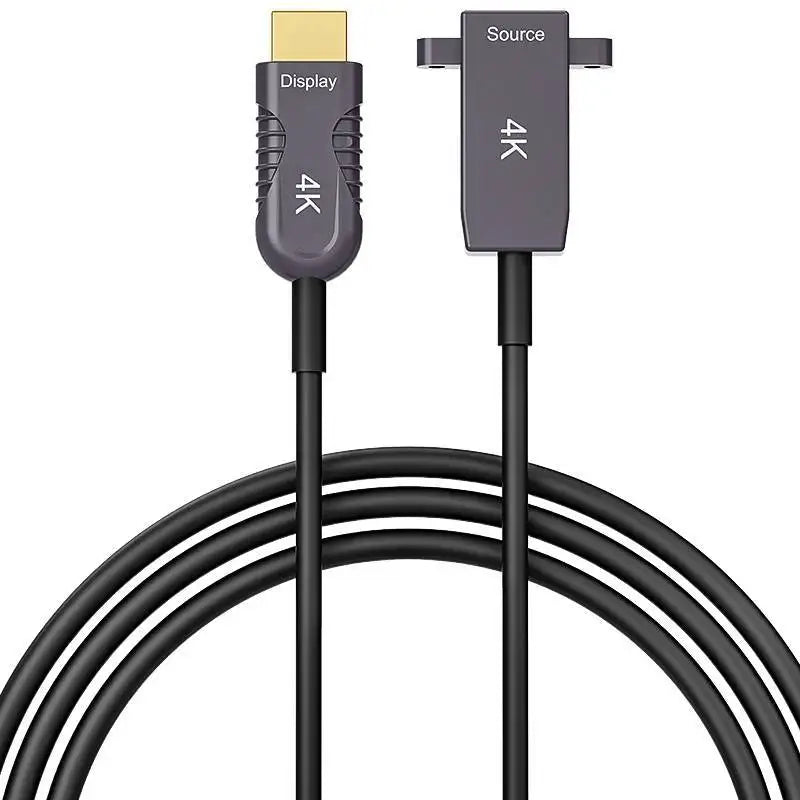

HDMI 2.0 Fiber Optic Cable Female to Male – 50m, 18Gbps, 4K@60Hz
The HDMI 2.0 Fiber Optic Cable Female to Male is designed for long-distance HDMI signal extension and flexible connectivity in professional AV installations. Supporting up to 18Gbps bandwidth and 4K@60Hz, it provides stable high-resolution signal transmission over distances up to 50 meters.
With a female-to-male configuration, the cable is particularly suitable for fixed installations where an existing HDMI cable, wall outlet, panel, or embedded interface needs to be extended without replacing the original connection. Its hybrid fiber and copper construction combines long-distance optical transmission with a slim Ø4.5 mm stainless-steel cable structure, making it suitable for space-constrained AV environments.
The active optical design is plug-and-play and requires no external power, helping simplify installation in conference rooms, digital signage systems, equipment racks, and other fixed AV applications.
Key Features
-
18Gbps HDMI 2.0 Bandwidth – Supports high-bandwidth HDMI 2.0 signal transmission up to 18Gbps.
-
4K@60Hz Support – Designed for 4K Ultra HD video transmission at 60Hz on compatible HDMI systems.
-
Up to 50m Transmission – Extends HDMI signals over long distances while maintaining stable connectivity.
-
Female-to-Male Configuration – Designed for HDMI extension, gender adaptation, embedded installations, and fixed AV connections.
-
Hybrid Fiber + Copper Construction – Combines optical fiber transmission with copper conductors for long-distance active optical connectivity.
-
Slim Ø4.5mm Stainless-Steel Construction – Compact and durable cable structure for space-constrained installations and professional cable routing.
-
Plug-and-Play Active Optical Design – No external power supply required, simplifying system integration.
-
Broad Compatibility – Backward compatible with HDMI 1.4 systems and supports HDCP 1.4 / 2.2 environments.
Professional Applications
Fixed AV Installations
Extend existing HDMI connections in commercial and professional AV systems without replacing the original cable infrastructure.
Digital Signage
Suitable for connecting media players, signage controllers, displays, and commercial screens across longer installation distances.
Conference Rooms
Provides flexible HDMI extension for displays, projectors, video conferencing systems, and meeting-room equipment.
Embedded & In-Wall Installations
The female-to-male configuration is useful where HDMI connections are integrated into wall panels, furniture, equipment cabinets, or other fixed structures.
Equipment Racks & AV Systems
The slim Ø4.5mm structure helps simplify cable routing in equipment racks and installations where available space is limited.
Professional AV Integration
Suitable for AV integrators, system installers, commercial display projects, and custom HDMI extension applications.
Technical Specifications
| Specification |
Details |
| Product Type |
HDMI 2.0 Fiber Optic Cable |
| Connector Configuration |
HDMI Female to HDMI Male |
| HDMI Version |
HDMI 2.0 |
| Bandwidth |
Up to 18Gbps |
| Maximum Transmission Distance |
Up to 50m |
| Resolution Support |
Up to 4K@60Hz* |
| Cable Structure |
Hybrid Fiber + Copper |
| Cable Diameter |
Ø4.5mm |
| Cable Construction |
Stainless Steel |
| Optical Design |
Active Optical Cable (AOC) |
| External Power |
Not Required |
| HDCP |
HDCP 1.4 / 2.2 |
| Backward Compatibility |
HDMI 1.4 |
| Installation |
Plug and Play |
| Applications |
AV Extension, Digital Signage, Conference Rooms, Fixed Installations |
*Actual resolution and refresh rate depend on the source device, display, HDMI implementation, cable length, and overall system configuration.
Designed for Flexible HDMI Extension
Unlike a conventional male-to-male HDMI cable, this female-to-male HDMI fiber optic cable is designed specifically for installations where connection flexibility is important. It can be used to extend an existing HDMI cable or interface while maintaining a clean and integrated installation.
The 50m transmission capability, slim Ø4.5mm stainless-steel construction, and active optical architecture make it suitable for professional AV projects that require long-distance HDMI connectivity without adding an external power supply.
B2B & Project Applications
This cable is suitable for:
-
AV integrators and system installers
-
Digital signage projects
-
Conference room and meeting room installations
-
Commercial display systems
-
Fixed HDMI extension applications
-
In-wall and embedded AV installations
-
Equipment racks and control systems
-
OEM and custom cable projects
-
Bulk distribution and professional AV projects
For OEM, ODM, bulk orders, or project requirements, provide the required cable length, connector configuration, quantity, installation environment, and HDMI specification for a suitable configuration.
SKU: SHFM-8700-010
