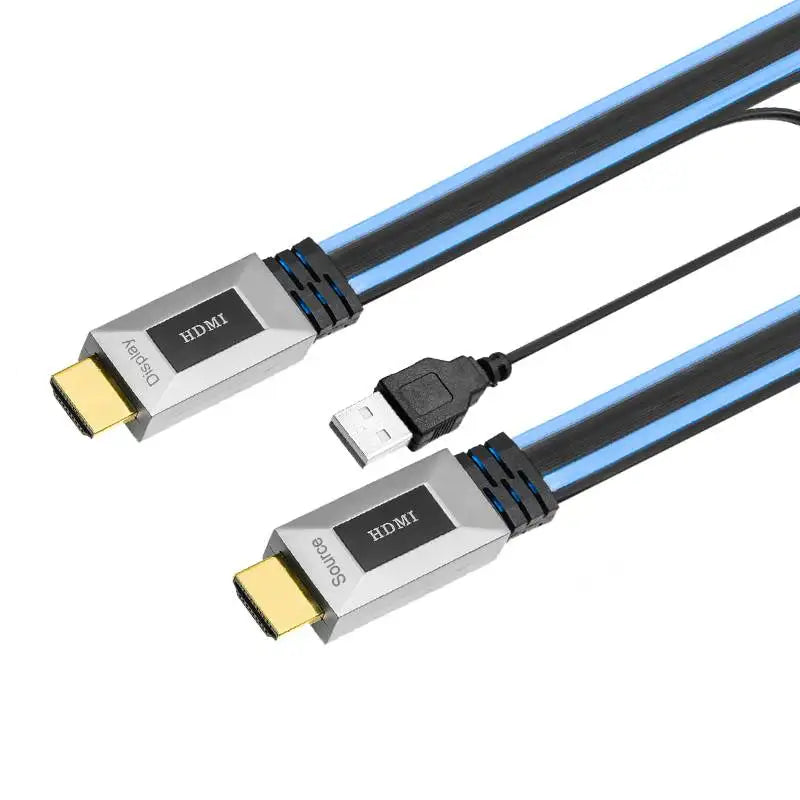

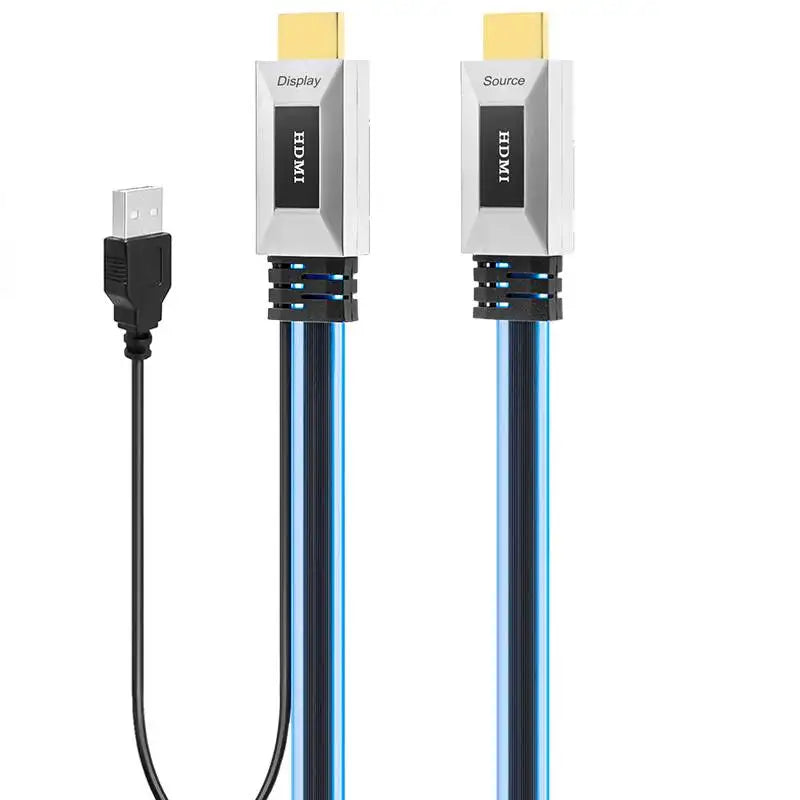

The HDMI 2.1 Hybrid Fiber Optic Cable is a high-performance long-distance connectivity solution designed for professional AV, architectural lighting displays, museums, digital signage, premium retail environments, and other high-resolution visual installations.
Supporting up to 48Gbps bandwidth, the cable is designed for high-bandwidth HDMI 2.1 applications, including 8K@60Hz and 4K@120Hz video transmission. Its hybrid fiber and copper architecture combines optical fiber for high-speed signal transmission with copper conductors for power delivery, enabling stable long-distance transmission over distances of up to 100 meters without an external power supply.
With a slim H3.8 × W16mm cable structure, the design provides greater installation flexibility for integrated display systems, architectural environments, and space-constrained applications.
Key Features
-
48Gbps HDMI 2.1 Bandwidth
Supports up to 48Gbps bandwidth for high-resolution and high-refresh-rate HDMI applications.
-
8K@60Hz & 4K@120Hz
Designed for ultra-high-definition visual applications requiring high resolution and smooth high-refresh-rate performance.
-
Up to 100m Long-Distance Transmission
Active optical technology enables reliable HDMI signal transmission over distances of up to 100 meters without external power.
-
Hybrid Fiber + Copper Construction
Combines optical fiber for high-speed signal transmission with copper conductors for power delivery.
-
Slim Installation-Friendly Design
With a compact H3.8 × W16mm structure, the cable is designed for flexible routing and integration into professional display environments.
-
Plug-and-Play Operation
Designed for straightforward installation without external power supplies or additional signal converters for compatible HDMI systems.
-
HDCP 2.3 & CEC Support
Supports HDCP 2.3 and CEC for compatible HDMI devices and professional display systems.
-
EDID Compliant
Designed to support EDID communication for reliable source-to-display identification and configuration.
-
Backward Compatible
Compatible with HDMI 2.0 and HDMI 1.4 systems for greater deployment flexibility.
Professional Applications
The HDMI 2.1 Hybrid Fiber Optic Cable is designed for professional installations where long-distance transmission, high bandwidth, compact cable routing, and reliable visual performance are required.
Architectural Lighting Displays
Suitable for integrated architectural lighting and visual display systems requiring high-resolution HDMI content across extended distances.
Museum & Exhibition Installations
Designed for museum exhibits, interactive installations, immersive displays, and multimedia exhibition systems where clean cable integration and reliable transmission are important.
Digital Signage
Suitable for large-format digital signage and commercial display systems where source devices and displays may be separated by long distances.
Premium Retail Environments
Designed for high-end retail visual merchandising, interactive displays, video walls, and immersive brand experiences.
Professional AV Installations
Provides a long-distance HDMI connectivity solution for commercial AV systems, entertainment venues, showrooms, and specialized display environments.
System Integration Projects
Suitable for AV integrators, installation contractors, display manufacturers, and system designers requiring long-distance HDMI 2.1 connectivity.
Technical Specifications
| Specification |
Details |
| Interface |
HDMI Type A to Type A |
| HDMI Standard |
HDMI 2.1 |
| Cable Type |
Hybrid Fiber Optic Cable |
| Maximum Bandwidth |
48Gbps |
| Maximum Resolution |
Up to 8K@60Hz* |
| High Refresh Rate |
Up to 4K@120Hz* |
| Maximum Transmission Distance |
Up to 100m |
| Construction |
Hybrid Fiber + Copper |
| Cable Dimensions |
H3.8 × W16mm |
| HDCP |
HDCP 2.3 |
| CEC |
Supported |
| EDID |
Compliant |
| HDMI Compatibility |
HDMI 2.1 / 2.0 / 1.4 |
| External Power |
Not Required |
| Operation |
Plug-and-Play |
| Primary Applications |
Professional AV / Museum / Retail / Digital Signage / Architectural Display |
*Actual resolution, refresh rate, HDR features, and other display capabilities depend on the source device, GPU, display, content, cable length, and overall system configuration.
Built for 100m HDMI 2.1 Display Infrastructure
For AV system integrators, commercial installers, digital signage providers, museum technology companies, architectural display designers, and premium retail solution providers, this HDMI 2.1 hybrid fiber optic cable provides a practical solution for long-distance high-bandwidth display connectivity.
With 48Gbps bandwidth, up to 100m transmission, 8K@60Hz support, 4K@120Hz support, hybrid fiber construction, and no external power requirement, it is designed for professional display installations where conventional copper HDMI cables may not provide the required transmission distance.
The combination of a slim H3.8 × W16mm structure and long-distance optical transmission makes the cable suitable for integrated installations where both performance and clean cable routing are important.
Frequently Asked Questions
How far can this HDMI 2.1 fiber optic cable transmit?
The cable supports HDMI signal transmission over distances of up to 100 meters, depending on the cable configuration and connected equipment.
Does the 100m HDMI cable require external power?
No external power supply is required for compatible systems. The hybrid fiber and copper architecture is designed to support signal transmission and power delivery through the HDMI connection.
Does it support 8K@60Hz?
Yes. The cable is designed to support up to 8K@60Hz in compatible HDMI 2.1 systems. Actual performance depends on the source device, display, content, and system configuration.
Is the cable compatible with HDMI 2.0 and HDMI 1.4?
Yes. The cable is designed to provide backward compatibility with HDMI 2.0 and HDMI 1.4 devices.
What applications is a 100m HDMI fiber optic cable suitable for?
Typical applications include professional AV, digital signage, museum exhibits, architectural displays, premium retail environments, commercial installations, and other long-distance high-resolution display systems.
Can custom cable lengths be supplied?
Custom lengths can be considered for project requirements. For OEM, system integration, or bulk orders, contact us with the required cable length, HDMI specification, quantity, and application requirements.
