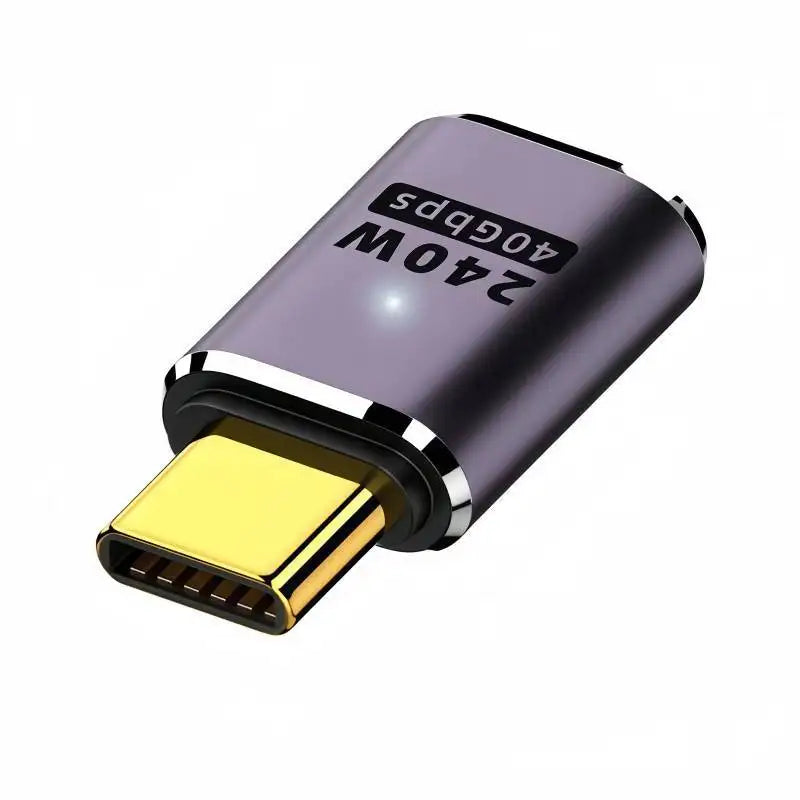

USB4 Type-C Male to Female Straight Adapter – 40Gbps, 240W PD, 8K@60Hz

USB4 Type-C Male to Female Straight Adapter – 40Gbps, 240W PD, 8K@60Hz

常规价格 $40.00 USD
常规价格 促销价 $40.00 USD
促销 售罄
已含税费。
数量


Designed for next-generation USB-C systems, this USB4 Type-C male-to-female straight adapter supports up to 40Gbps data transfer, 240W Power Delivery, and high-resolution video output up to 8K@60Hz.

The straight-through design provides a compact way to extend or reposition a USB-C connection without changing the overall cable direction. A durable aluminum alloy housing improves mechanical protection and heat dissipation, while the built-in LED indicator provides a quick visual reference when power is present.

Ideal for high-performance laptops, USB4 docking stations, external storage, workstations, displays, and other USB-C devices used in professional and high-bandwidth environments.

Key Features

  • 40Gbps USB4 Data Transfer – Supports up to 40Gbps bandwidth for high-speed storage, docking stations, peripherals, and professional workflows.

  • 240W USB-C Power Delivery – Supports up to 240W PD with a 48V/5A power profile when used with compatible USB PD 3.1 equipment.

  • 8K@60Hz Video Output – Designed to support high-resolution video applications, including up to 8K@60Hz and 4K@120Hz, depending on the host device, display, cable, and video protocol.

  • USB-C Male to Female Design – Extends or repositions an existing USB-C connection while maintaining a compact, straight connection path.

  • Built-in LED Indicator – Provides a convenient visual indication when power is being supplied through the connection.

  • Aluminum Alloy Housing – Durable metal construction provides additional protection for professional and everyday installations.

  • Compact Form Factor – Designed for laptops, docking stations, workstations, and other space-sensitive USB-C setups.

Professional Applications

High-Performance Laptops

Extend or reposition USB-C ports on modern laptops while maintaining access to high-speed data, charging, and supported video functions.

USB4 Docking Stations

Suitable for USB4 docks and hubs where high bandwidth and high-power USB-C connectivity are required.

High-Speed External Storage

Designed for USB4-compatible SSDs and other high-performance storage devices where high data bandwidth is important.

Professional Workstations

Useful for desktop workstations, content-creation systems, engineering computers, and other USB-C equipment requiring high-speed connectivity.

High-Resolution Displays

Supports compatible USB-C video configurations for high-resolution displays, including 8K@60Hz and 4K@120Hz applications.

Technical Specifications

Specification Details
Product Type USB4 Type-C Male to Female Straight Adapter
Connector USB-C Male to USB-C Female
USB Standard USB4
Data Transfer Rate Up to 40Gbps
Power Delivery Up to 240W
PD Profile Up to 48V/5A
Video Output Up to 8K@60Hz / 4K@120Hz
Indicator Built-in LED
Housing Aluminum Alloy
Design Straight / Inline
Application Laptop, Dock, SSD, Workstation, Display, USB-C Devices

Designed for High-Bandwidth USB-C Connectivity

Unlike a basic USB-C extension adapter, this USB4 adapter is designed around high-bandwidth and high-power applications. Its 40Gbps USB4 capability, 240W PD support, and high-resolution video support make it suitable for modern USB-C ecosystems where multiple functions may be carried through a single connection.

The aluminum alloy housing adds durability while maintaining a compact form factor, making the adapter practical for both desktop and mobile professional setups.

Important Compatibility Note

Actual performance depends on the connected devices, USB-C ports, cables, and supported protocols.

  • 40Gbps requires compatible USB4 host, device, and cable hardware.

  • 240W charging requires compatible USB PD 3.1 source/device and a suitable 240W-rated cable.

  • 8K@60Hz / 4K@120Hz video output requires compatible video-capable USB-C ports, display devices, cables, and supported DisplayPort/USB4 video implementation.

  • Not every USB-C port supports USB4, 40Gbps data, high-power PD, or video output.
