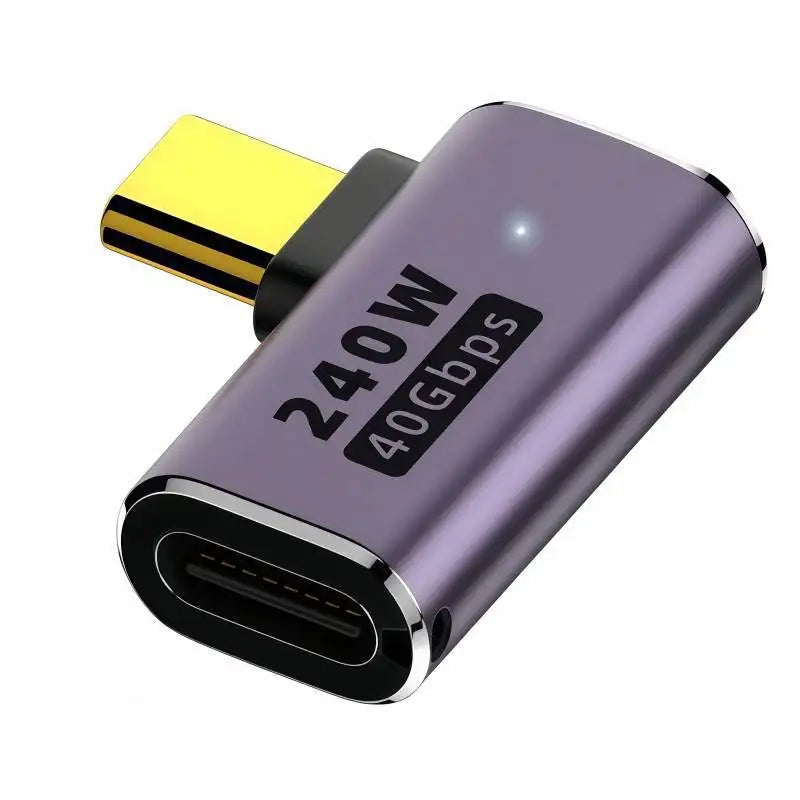

USB4 Right Angle USB-C Adapter – 40Gbps, 240W PD, 8K@60Hz

USB4 Right Angle USB-C Adapter – 40Gbps, 240W PD, 8K@60Hz

常规价格 $40.00 USD
常规价格 促销价 $40.00 USD
促销 售罄
已含税费。
数量


The USB4 Right Angle USB-C Adapter is a compact connectivity solution designed for high-performance data, power, and video applications in space-constrained environments.

Supporting up to 40Gbps data transfer, 240W USB Power Delivery, and 8K@60Hz video output, this adapter is designed for next-generation USB4 systems, high-performance laptops, desktop computers, monitors, docking stations, and gaming setups.

Its 90° right-angle Type-C design redirects the cable connection along the side of the device, helping reduce cable protrusion and minimizing stress on the USB-C port. This makes it particularly useful where conventional straight connectors are difficult to accommodate or where cleaner cable routing is required.

The adapter features a durable aluminum alloy housing with an integrated LED indicator for connection and operating status visibility.

Key Features

  • 40Gbps USB4 Data Transfer – Supports up to 40Gbps bandwidth for high-speed data transfer on compatible USB4 systems.

  • 240W USB Power Delivery – Supports up to 240W PD with 48V/5A capability when used with compatible USB-C power sources, devices, cables, and PD profiles.

  • 8K@60Hz Video Output – Designed to support up to 8K@60Hz video output on compatible USB4 / USB-C DisplayPort Alt Mode systems.

  • 4K@120Hz Support – Suitable for high-refresh-rate 4K displays when supported by the connected source, display, and system configuration.

  • 90° Right-Angle Design – Redirects the cable to reduce protrusion and improve cable management in confined spaces.

  • Reduced Port Stress – The angled connector can help reduce excessive bending and mechanical strain on the connected cable and USB-C port.

  • Aluminum Alloy Housing – Durable metal construction designed for everyday professional and high-performance applications.

  • LED Indicator – Provides a convenient visual indication of connection or operating status.

  • Compact Form Factor – Designed for laptops, desktops, docking stations, monitors, gaming systems, and other USB-C equipment.

Professional Applications

Laptop & Desktop Connectivity

Ideal for connecting USB4 peripherals, high-speed storage, displays, docking stations, and other Type-C devices while keeping cables closer to the device body.

Docking Stations

The right-angle configuration helps improve cable routing around USB-C docking stations, hubs, and desktop workstations.

High-Performance Storage

Supports USB4 high-bandwidth data environments for compatible external SSDs, storage systems, and professional data transfer applications.

Gaming Systems

Suitable for gaming laptops, desktops, high-refresh-rate displays, external GPUs, and other USB-C gaming peripherals where space-efficient cable routing is important.

Professional Workstations

Useful for video production, content creation, engineering, design, and other workstation environments that use high-speed USB4 peripherals.

Tight-Space Installations

The 90° connector is particularly useful when a straight USB-C connector would interfere with a desk, enclosure, wall, equipment cabinet, or adjacent port.

Technical Specifications

Specification Details
Product Type USB4 Right-Angle USB-C Adapter
Connector Type USB Type-C
Interface USB4 / USB-C
Data Transfer Rate Up to 40Gbps*
Power Delivery Up to 240W
PD Rating Up to 48V / 5A*
Video Output Up to 8K@60Hz*
4K Support Up to 4K@120Hz*
Connector Angle 90° Right Angle
Housing Aluminum Alloy
Indicator LED
Primary Applications Data, Charging, Video, Cable Management

*Actual data speed, charging power, video resolution, refresh rate, and supported functions depend on the connected host, device, USB-C cable, power supply, display, and protocol implementation. 240W operation requires compatible USB PD 3.1 equipment and an appropriate 240W-rated USB-C cable.

Designed for Better USB-C Cable Management

A conventional straight USB-C connector can create unnecessary cable protrusion, especially when a laptop or peripheral is positioned close to a wall, desk surface, equipment enclosure, or neighboring device.

The 90° right-angle configuration changes the cable exit direction, helping keep the connection closer to the device and creating a cleaner cable path.

It can also reduce sharp cable bends near the USB-C port, making it a practical choice for desktop workstations, gaming setups, docking stations, and other installations where connector orientation matters.

High-Speed Data, Power & Video in One Compact Adapter

The adapter is designed for USB4 environments where a single USB-C connection may carry high-speed data, high-power charging, and video.

With support for up to 40Gbps data transfer, 240W PD, and 8K video output, it provides a compact way to optimize USB-C connectivity without significantly increasing the footprint around the device port.

B2B & Project Applications

Ideal for:

  • USB-C accessory brands

  • Laptop and PC peripheral manufacturers

  • Docking station manufacturers

  • USB4 hub manufacturers

  • Gaming accessory brands

  • Professional workstation suppliers

  • External storage manufacturers

  • Monitor and display accessory companies

  • Industrial equipment manufacturers

  • OEM / ODM projects

  • Bulk USB-C accessory distribution

For OEM, ODM, or bulk projects, provide the required connector orientation, USB4 specification, PD requirement, video capability, housing material, LED configuration, quantity, and application environment for project evaluation.

Frequently Asked Questions

What does this USB4 right-angle adapter support?

The adapter is designed to support up to 40Gbps data transfer, 240W USB Power Delivery, and 8K@60Hz video output on compatible USB-C / USB4 systems.

Does it support 240W charging?

Yes. The adapter supports up to 240W PD at 48V/5A, provided that the connected charger, host device, USB-C cable, and PD implementation all support the required USB PD 3.1 power level.

Does it support 8K@60Hz?

Yes. It is designed to support up to 8K@60Hz on compatible USB4 / USB-C DisplayPort video systems. Actual video performance depends on the source, display, cable, and supported video protocol.

What is the advantage of the 90° design?

The right-angle configuration redirects the cable connection along the side of the device. This helps reduce cable protrusion and can make cable routing easier in tight spaces, desktop setups, equipment cabinets, and docking stations.

Can it reduce stress on a USB-C port?

The angled connector can help reduce sharp cable bends and mechanical strain near the port. However, it does not eliminate mechanical stress and should not be used as a substitute for proper cable routing.

Is it compatible with USB-C devices?

It is designed for compatible USB-C / USB4 devices. Actual functionality depends on the USB-C port's supported protocols and power capabilities.

Does 40Gbps work with every USB-C port?

No. The physical USB-C connector does not guarantee USB4 40Gbps performance. The connected host, peripheral, adapter, and cable must support the required USB4 specification.

Is it suitable for OEM projects?

Yes. OEM/ODM customization can be considered for applications such as USB4 accessories, docking stations, gaming peripherals, workstations, and professional USB-C equipment.
