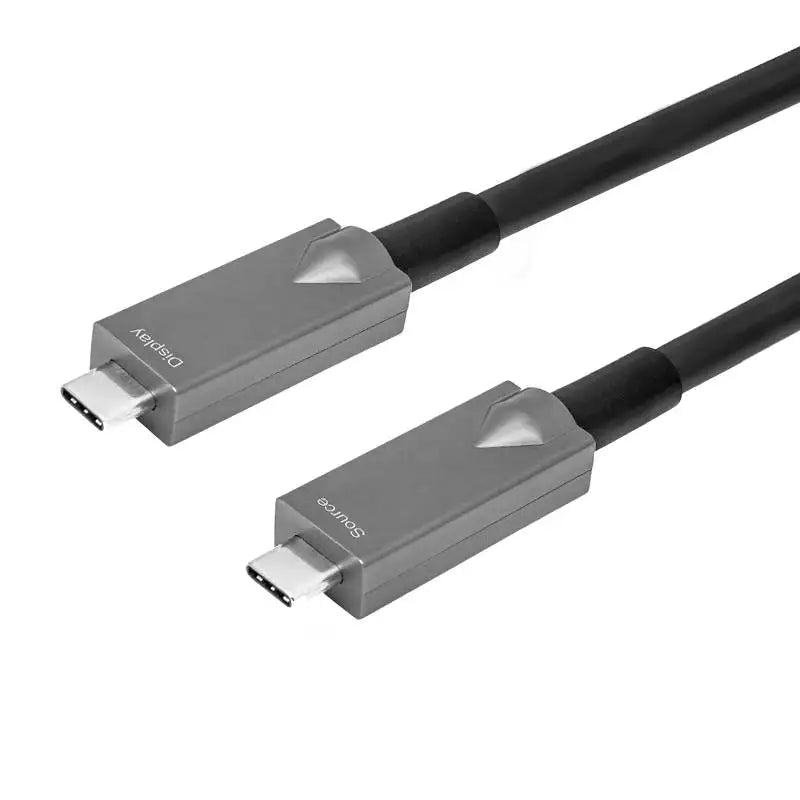

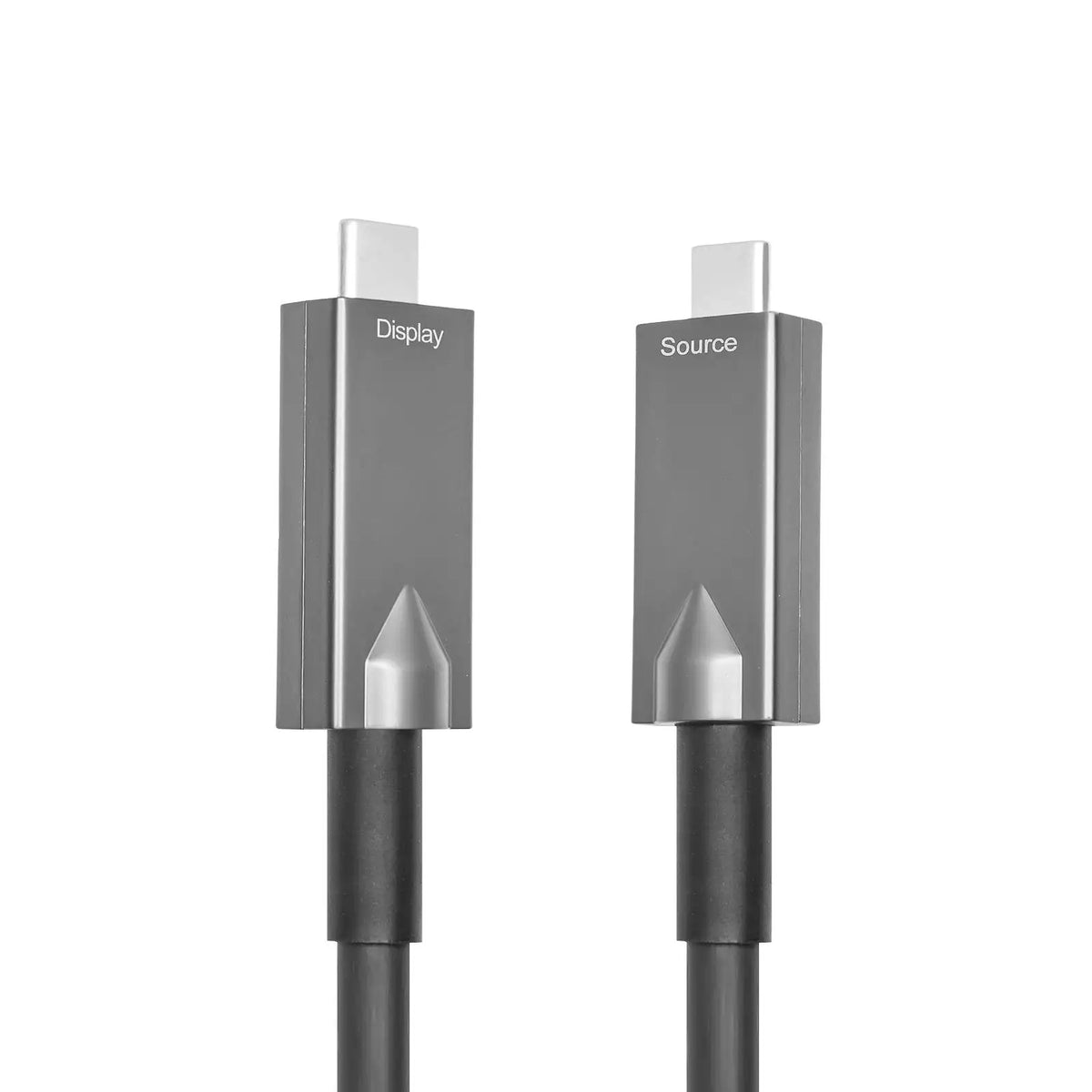

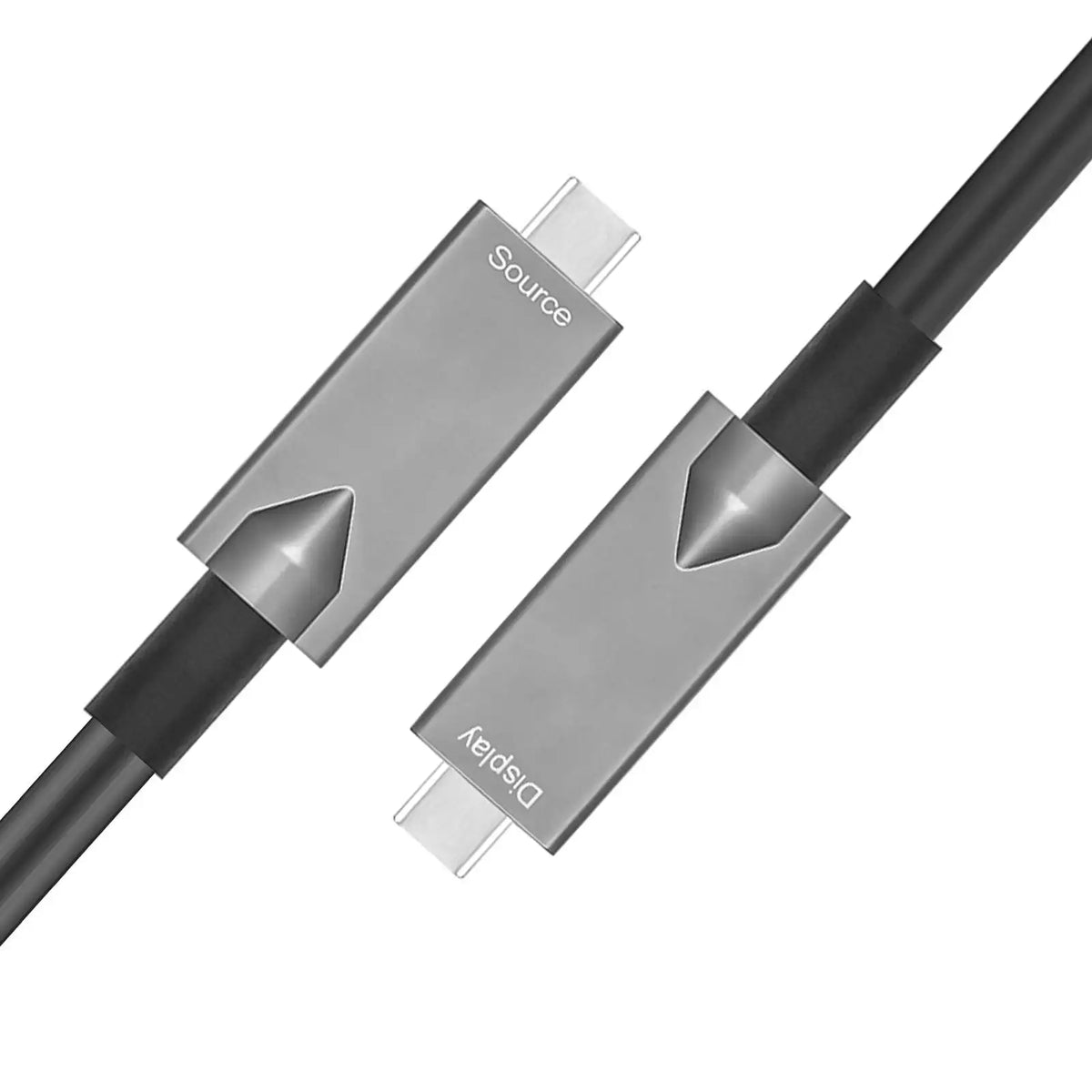

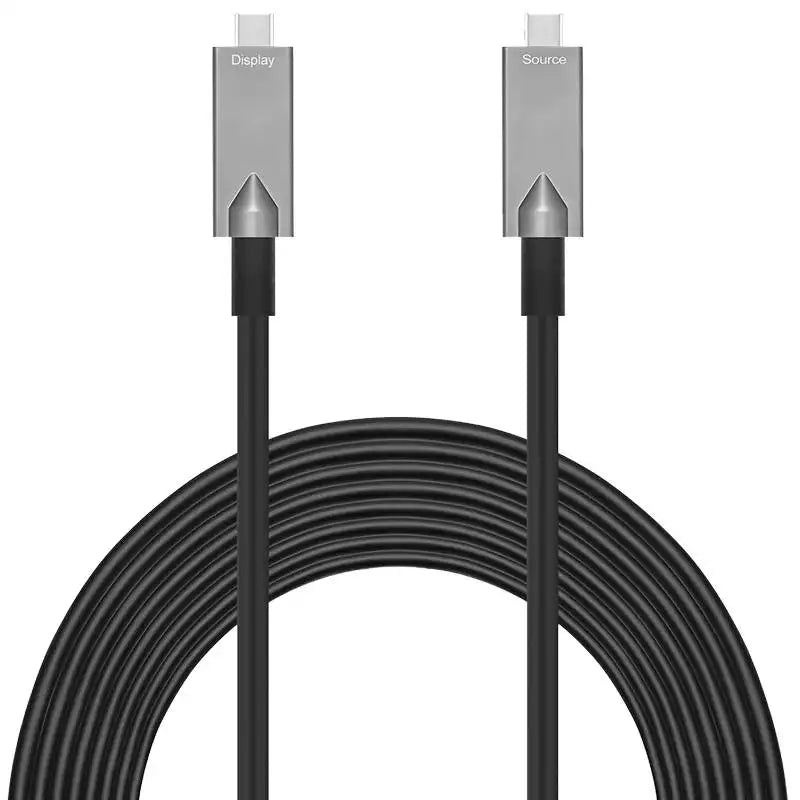

USB-C to USB-C USB 3.2 Gen 2 Active Optical Cable – 10Gbps, DP 1.4, 15m

USB-C to USB-C USB 3.2 Gen 2 Active Optical Cable – 10Gbps, DP 1.4, 15m

常规价格 $150.00 USD
常规价格 促销价 $150.00 USD
促销 售罄
已含税费。
数量


Full-Function USB-C Optical Connectivity for Long-Distance Professional Systems

This USB-C to USB-C Active Optical Cable combines 10Gbps USB 3.2 Gen 2 data transmission, DisplayPort 1.4 video support, and USB Power Delivery 3.0 up to 60W in a single 15-meter optical cable.

Using OM3/OM4 multimode optical fiber, the cable is designed to maintain stable high-speed connectivity over long distances while providing strong immunity to electromagnetic interference. Screw-lock USB-C connectors provide a more secure physical connection for fixed installations and professional equipment.

Designed for data centers, medical imaging systems, industrial automation, professional AV systems, and other high-density environments where conventional copper USB-C cables may be limited by distance or EMI.

Key Features

  • 10Gbps USB 3.2 Gen 2 – Supports SuperSpeed USB data transmission up to 10Gbps over 15m.

  • DisplayPort 1.4 Support – Supports USB-C video connectivity for compatible DP Alt Mode systems.

  • Full-Function USB-C – Combines high-speed data, video, and power delivery in one cable.

  • 15m Active Optical Transmission – Uses OM3/OM4 multimode optical fiber for stable long-distance connectivity.

  • Strong EMI/RFI Immunity – Optical transmission helps reduce susceptibility to electromagnetic interference in electrically noisy environments.

  • USB PD 3.0, Up to 60W – Supports power delivery up to 20V/3A when connected to compatible USB PD equipment.

  • Screw-Locking USB-C Connectors – Helps prevent accidental cable disconnection in fixed or vibration-prone installations.

  • Backward Compatible – Supports USB 2.0 and USB 1.1 devices for broader system compatibility.

Designed for Full-Function USB-C Systems

Unlike conventional USB extension cables focused primarily on data, this active optical cable is designed for multi-function USB-C connectivity.

A single cable can carry:

USB Data + DisplayPort Video + USB Power Delivery

This makes it suitable for installations where multiple separate cables would otherwise be required.

High-Speed USB Data

With support for USB 3.2 Gen 2 up to 10Gbps, the cable is designed for high-bandwidth USB peripherals, storage systems, cameras, industrial equipment, and other professional USB applications.

DisplayPort 1.4 Video

The cable supports DisplayPort 1.4 connectivity through compatible USB-C DP Alt Mode ports, enabling long-distance connection between USB-C source devices and compatible displays or docking systems.

Actual video resolution and refresh rate depend on the source device, display, USB-C implementation, DisplayPort configuration, and overall system.

60W USB Power Delivery

The cable supports USB Power Delivery 3.0 up to 20V/3A (60W) when used with compatible power sources and devices.

This enables data, video, and power to be carried through a single USB-C connection.

Screw-Locking Connector for Secure Installation

The screw-lock USB-C connector is designed for applications where accidental cable movement or disconnection can interrupt critical equipment.

The locking mechanism helps maintain a more secure physical connection in:

  • Industrial equipment

  • Data center installations

  • Medical imaging systems

  • Professional AV equipment

  • Machine vision systems

  • Control and monitoring systems

  • Fixed USB-C infrastructure

Optical Fiber for EMI-Sensitive Environments

The optical transmission architecture is particularly suitable for environments containing motors, power equipment, switching systems, industrial machinery, and other potential sources of electromagnetic interference.

Compared with conventional long copper USB connections, optical transmission provides strong resistance to EMI/RFI and is well suited to electrically noisy professional environments.

Professional Applications

Data Center Management

Long-distance USB-C connectivity for server management, KVM systems, rack-mounted equipment, and high-density infrastructure.

Medical Imaging

Designed for USB-C connectivity in medical imaging archives, diagnostic equipment, and other EMI-sensitive environments.

Industrial Automation

Suitable for connecting industrial computers, cameras, controllers, machine vision equipment, and USB-C peripherals across extended distances.

Professional AV

Supports long-distance USB-C connections for compatible displays, docking systems, conferencing equipment, and professional AV infrastructure.

Machine Vision

Useful for connecting industrial cameras and imaging peripherals where stable high-speed data transmission is required.

Technical Specifications

Specification Details
Product Type USB-C to USB-C Active Optical Cable
Connector Type USB-C Male to USB-C Male
Connector Feature Screw-Locking
USB Standard USB 3.2 Gen 2
Maximum Data Rate Up to 10Gbps
Video Protocol DisplayPort 1.4
Video Interface USB-C DisplayPort Alt Mode
Cable Length 15m
Fiber Type OM3/OM4 Multimode Fiber
Power Delivery USB PD 3.0
Maximum Power Up to 60W
PD Profile 20V / 3A
USB Backward Compatibility USB 2.0 / USB 1.1
Transmission Technology Active Optical
EMI Performance Strong EMI/RFI Immunity
Application Data Center / Medical / Industrial / Professional AV

Compatibility Note

For 10Gbps USB performance, the connected host and peripheral must support USB 3.2 Gen 2.

For DisplayPort video transmission, the USB-C source port must support DisplayPort Alt Mode or the applicable USB-C video protocol.

Actual data rate, video resolution, refresh rate, and power delivery depend on the connected devices, host implementation, display, and system configuration.

Built for Long-Distance USB-C Infrastructure

The combination of 10Gbps USB data, DisplayPort 1.4, 60W Power Delivery, optical transmission, and screw-lock connectors makes this cable suitable for professional installations where long-distance USB-C connectivity must carry more than data alone.

It provides a cleaner alternative to deploying separate cables for USB data, video, and power in compatible systems.

B2B & Project Applications

Suitable for:

  • Data center infrastructure

  • Medical imaging systems

  • Industrial automation

  • Machine vision

  • Professional AV installations

  • Conference room systems

  • USB-C docking infrastructure

  • Industrial computers

  • KVM and remote management systems

  • Control and monitoring equipment

  • Custom OEM installations

Custom lengths and OEM configurations can be considered for project requirements.



SKU: SCFC-3120
