Fiberusbc

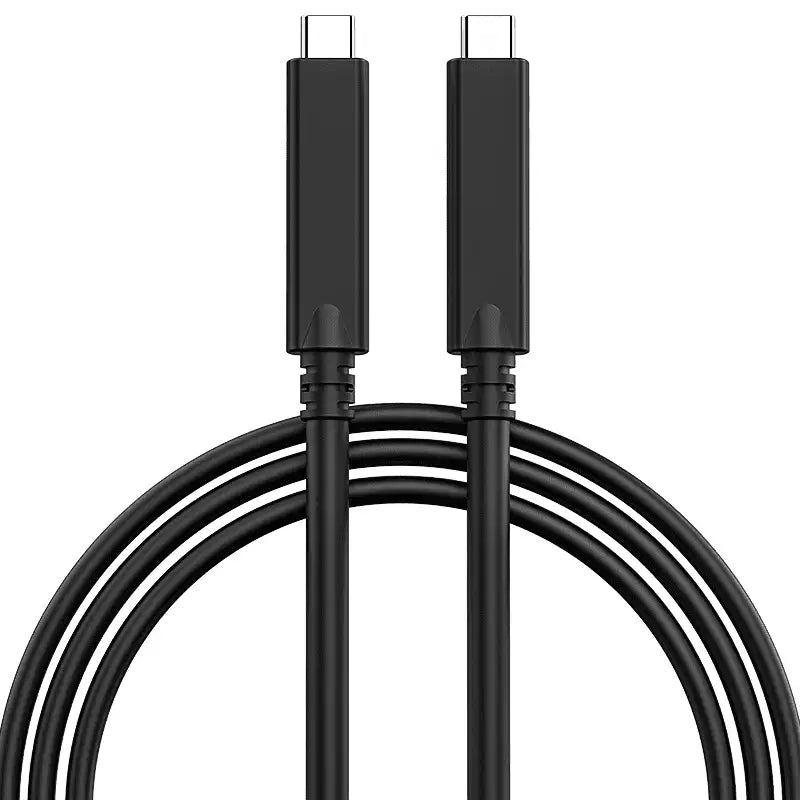

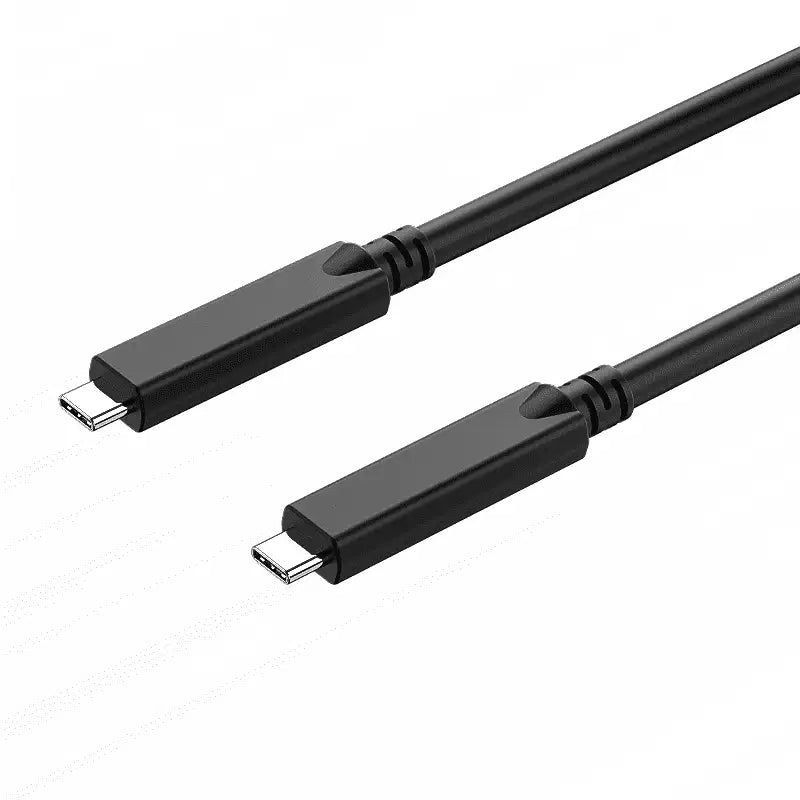

USB-C to USB-C 2-Lane & 4-Lane Active Optical Cable – 5Gbps, Data + Video + PD
USB-C to USB-C 2-Lane & 4-Lane Active Optical Cable – 5Gbps, Data + Video + PD
无法加载取货服务可用情况
Full-Function USB-C Optical Connectivity for Data, Video & Power
Designed for long-distance professional USB-C connectivity, this USB-C to USB-C Active Optical Cable combines high-speed USB data, video transmission, and Power Delivery in a single optical connection.
Using OM3/OM4 multimode optical fiber, the cable supports USB data transmission up to 5Gbps and is available in extended lengths up to 20 meters, depending on the selected configuration.
The 2-lane and 4-lane architecture provides flexible options for different USB-C system requirements, while the optical transmission design provides strong resistance to electromagnetic interference.
Designed for data centers, medical imaging systems, industrial automation, control rooms, professional AV, and long-distance USB-C display installations.
Key Features
5Gbps USB-C Data Transmission
Supports USB data transmission up to 5Gbps SuperSpeed for compatible USB-C systems.
Suitable for:
-
High-speed file transfers
-
USB peripherals
-
External storage
-
Professional workstations
-
Data acquisition equipment
-
Long-distance USB installations
The active optical architecture is designed to maintain stable data transmission over extended cable lengths.
2-Lane & 4-Lane Configurations
Available in different lane configurations to accommodate different USB-C system architectures.
The cable can support USB data and video transmission through a single USB-C connection, reducing cable complexity in professional installations.
The selected lane configuration should match the requirements of the host, display, and connected equipment.
Simultaneous Data + Video
Designed to carry USB data and video through one USB-C cable for compatible systems.
This makes it possible to connect a workstation to a display or professional peripheral without deploying separate long-distance cables for each function.
Suitable for:
-
USB-C workstations
-
Professional displays
-
Conference systems
-
Control rooms
-
Digital signage
-
Professional AV systems
Actual video resolution and refresh rate depend on the source device, display, USB-C implementation, video protocol, and system configuration.
Dynamic Power Delivery
Power delivery varies according to cable length:
| Cable Length | Maximum Power |
|---|---|
| Up to 10m | Up to 60W |
| Up to 15m | Up to 40W |
| Up to 20m | Up to 20W |
This length-based power configuration allows the cable to balance long-distance transmission with the power requirements of different USB-C installations.
Actual power delivery depends on the connected USB-C source, device, cable configuration, and power negotiation.
Long-Distance Optical Transmission
The cable uses OM3/OM4 multimode optical fiber to extend USB-C connectivity beyond the practical range of many conventional copper cables.
Optical transmission helps reduce signal attenuation over long cable runs while providing strong resistance to electromagnetic interference.
Available for:
-
Rack-to-rack connections
-
Equipment-room installations
-
Control rooms
-
Medical environments
-
Industrial systems
-
Professional AV infrastructure
Strong EMI Resistance
The optical data path is inherently resistant to electromagnetic interference, making the cable suitable for environments with high levels of electrical noise.
Recommended for:
-
Industrial automation
-
Medical imaging
-
Data centers
-
Control systems
-
Manufacturing equipment
-
High-density electronic installations
Broad USB Compatibility
Designed for compatibility with multiple generations of USB equipment.
Depending on the selected configuration and connected hardware, the cable supports:
-
USB 3.2
-
USB 2.0
-
USB 1.1
Actual compatibility and performance depend on the host controller, peripheral, USB-C implementation, and system configuration.
Professional Applications
Data Center Infrastructure
Designed for long-distance USB-C connections between management workstations, racks, peripherals, and equipment areas.
Medical Imaging
Suitable for compatible medical imaging equipment and archive systems where stable connectivity and EMI resistance are important.
Industrial Automation
Provides extended USB-C connectivity for industrial computers, control equipment, machine interfaces, and automation systems.
Control Rooms
Useful for connecting workstations, displays, monitoring equipment, and USB peripherals across extended distances.
Professional AV
Suitable for conference rooms, professional displays, digital signage, and other AV installations requiring combined USB data and video.
Long-Distance Workstations
Allows compatible USB-C displays and peripherals to be positioned farther from the host workstation while maintaining a single-cable connection.
Technical Specifications
| Specification | Details |
|---|---|
| Product Type | USB-C to USB-C Active Optical Cable |
| Connector | USB-C Male to USB-C Male |
| Data Rate | Up to 5Gbps |
| USB Compatibility | USB 3.2 / USB 2.0 / USB 1.1 |
| Lane Configuration | 2-Lane / 4-Lane |
| Video | USB-C Video Support, Configuration Dependent |
| Fiber Type | OM3/OM4 Multimode Fiber |
| Maximum Length | Up to 20m |
| Transmission Technology | Active Optical |
| Power ≤10m | Up to 60W |
| Power ≤15m | Up to 40W |
| Power ≤20m | Up to 20W |
| EMI Performance | Strong EMI Resistance |
| Application | Data Center / Medical / Industrial / Professional AV |
One Cable for Data, Video & Power
Traditional long-distance installations may require separate cables for USB data, display output, and power.
This full-function USB-C optical cable is designed to combine these functions into one connection:
USB Data + Video + Power
This helps simplify cable management while providing greater flexibility when the host computer and connected equipment are separated by several meters.
The optical transmission architecture is particularly useful when the installation also requires resistance to electromagnetic interference.
Choose the Right Configuration
2-Lane Configuration
Suitable for systems where the required USB data and video bandwidth can be supported using a 2-lane architecture.
Recommended for:
-
General professional displays
-
Conference systems
-
Workstations
-
USB-C peripherals
-
Professional AV
4-Lane Configuration
Suitable for systems where display bandwidth is the primary requirement and the system architecture supports a 4-lane USB-C video configuration.
Recommended for:
-
High-resolution displays
-
Professional visualization
-
Digital signage
-
Advanced workstation environments
-
High-bandwidth AV systems
The selected configuration should be matched to the source and display specifications.
Compatibility & Installation Notes
-
Maximum USB data transmission is 5Gbps with compatible equipment.
-
Video transmission requires a compatible USB-C video output implementation.
-
Actual resolution and refresh rate depend on the source, display, USB-C controller, video protocol, and system configuration.
-
Power delivery varies by cable length: 60W / 40W / 20W according to the specified length range.
-
USB 2.0 and USB 1.1 compatibility depends on the selected product configuration and connected equipment.
-
Avoid excessive bending, pulling, crushing, or twisting during installation.
-
Custom lengths and OEM configurations can be considered for professional projects.
B2B & Project Applications
Ideal for:
-
Data center infrastructure
-
Medical imaging systems
-
Industrial automation
-
Control rooms
-
Professional AV
-
Digital signage
-
USB-C workstation infrastructure
-
Long-distance display systems
-
Industrial computers
-
Conference room systems
-
OEM equipment integration
-
Custom USB-C installations
Custom cable lengths and configurations are available for professional project requirements.
