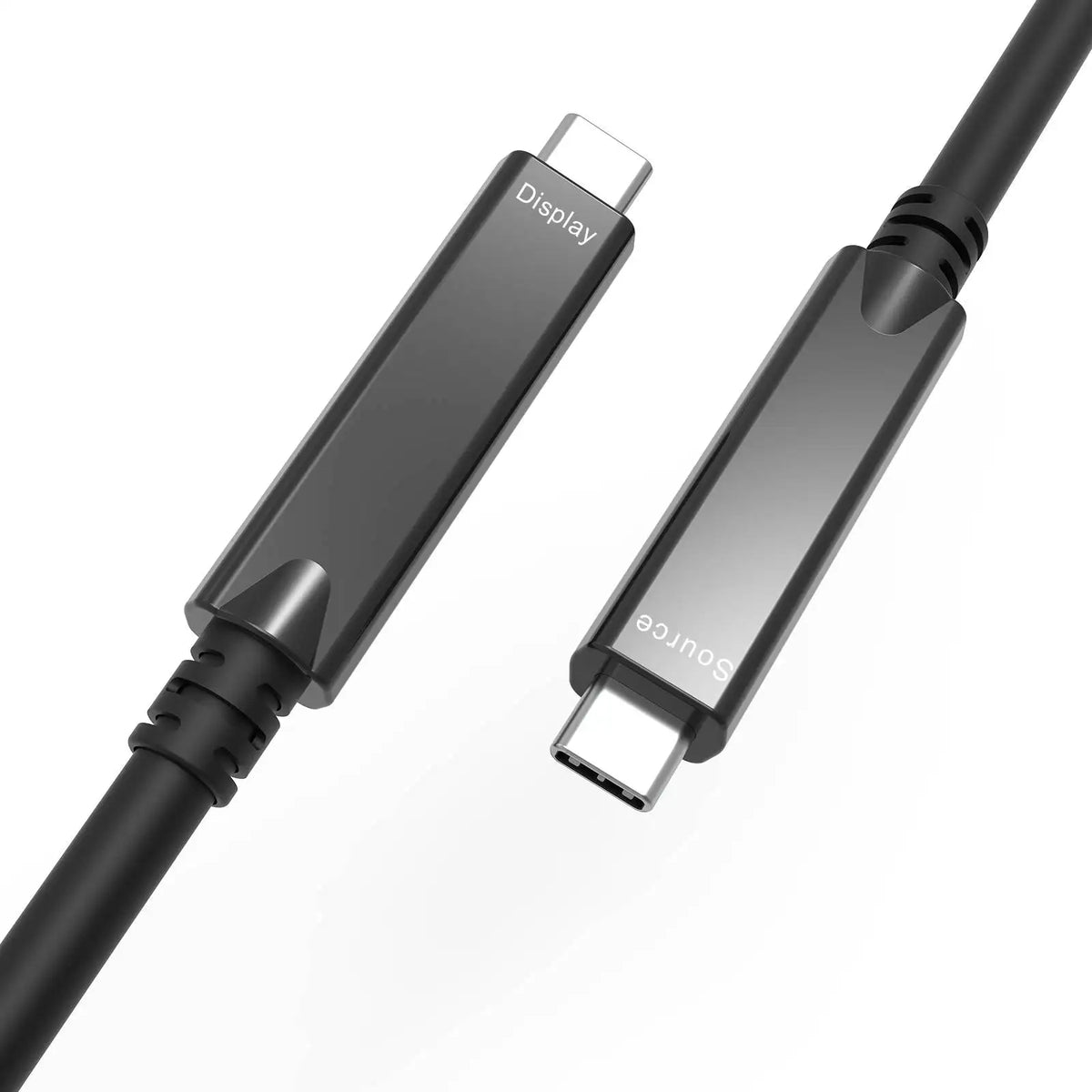

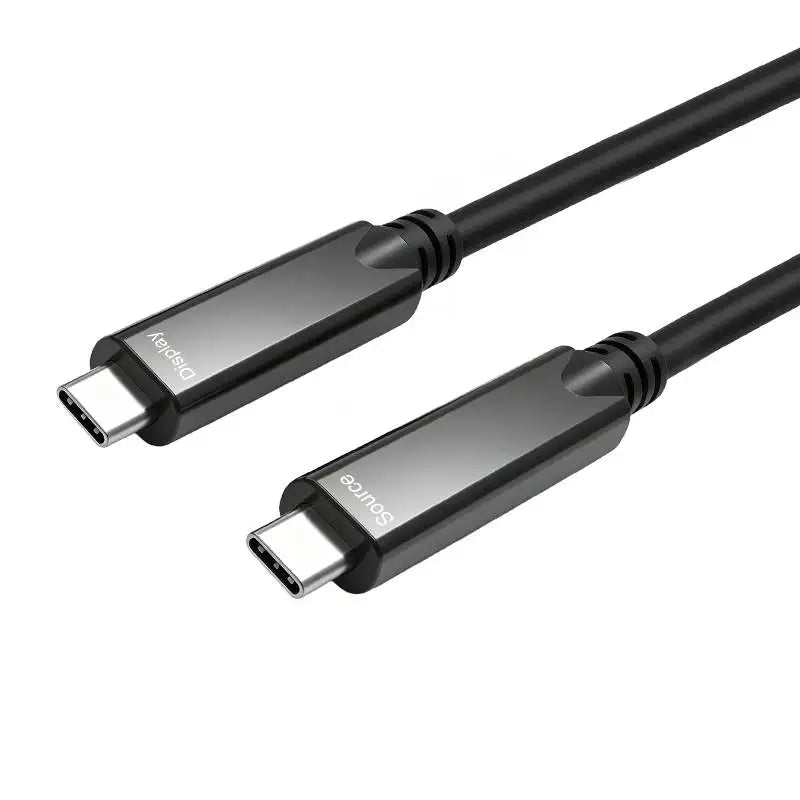

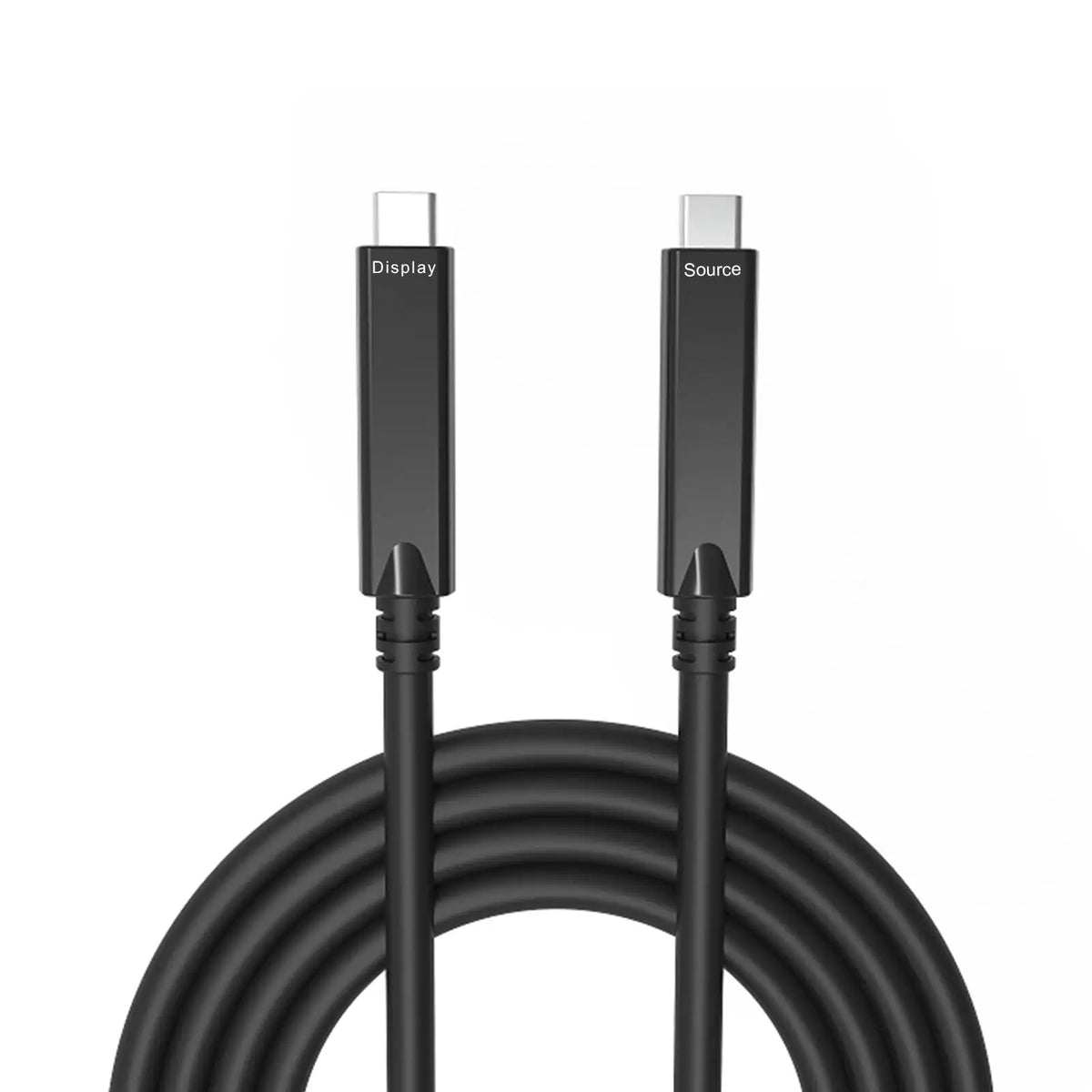

USB-C to USB-C Full-Function Active Optical Cable – 10Gbps, DP 2.1/DP 1.4, 15m
USB-C to USB-C Full-Function Active Optical Cable – 10Gbps, DP 2.1/DP 1.4, 15m
无法加载取货服务可用情况
Full-Function USB-C Optical Connectivity for Data, Display & Power
Engineered for professional long-distance connectivity, this USB-C to USB-C Full-Function Active Optical Cable combines high-speed USB data, DisplayPort video, and USB Power Delivery in a single optical connection.
Using OM3/OM4 multimode optical fiber, the cable supports USB data transmission up to 10Gbps and cable lengths up to 15 meters, while providing strong resistance to electromagnetic interference.
Two configuration options are available depending on system requirements:
Option A — 4-Lane DisplayPort 2.1
Designed for high-resolution display applications requiring full 4-lane DisplayPort connectivity.
Option B — DisplayPort 1.4 + USB 3.2 Data
Supports 2-lane DisplayPort 1.4 video together with USB data transmission up to 10Gbps, enabling simultaneous data and display connectivity.
With a compact 6.5mm outer diameter, the cable provides a balance of long-distance performance, installation flexibility, and professional-grade cable management.
Key Features
Up to 10Gbps USB Data Transmission
Supports USB data transmission up to 10Gbps for compatible high-bandwidth peripherals, storage systems, workstations, and professional equipment.
The active optical architecture is designed to maintain stable high-speed data communication over extended cable runs where conventional copper USB-C cables may experience greater signal attenuation or EMI exposure.
Option A: 4-Lane DisplayPort 2.1
The 4-lane DisplayPort 2.1 configuration is designed for high-resolution display applications requiring the full DisplayPort lane configuration.
Suitable for:
-
High-resolution workstations
-
Professional displays
-
Digital signage
-
Visualization systems
-
Professional AV
-
Advanced graphics environments
The actual supported resolution, refresh rate, compression, and color configuration depend on the source, display, GPU, DisplayPort implementation, and overall system architecture.
Option B: DisplayPort 1.4 + USB 3.2
For systems requiring simultaneous data and video connectivity, the second configuration combines:
2-Lane DisplayPort 1.4 + USB 3.2 up to 10Gbps
This allows compatible USB-C systems to carry display output and high-speed USB data through a single cable.
Suitable for:
-
USB-C workstations
-
Docking environments
-
Professional monitors
-
Conference systems
-
Digital signage
-
High-performance peripherals
This configuration also provides backward compatibility with compatible USB 2.0 and USB 1.1 devices.
Long-Distance Optical Transmission
Supports cable lengths up to 15 meters using OM3/OM4 multimode optical fiber.
Optical transmission helps reduce the signal attenuation and EMI exposure that can become more significant in long copper connections.
Available for:
-
Long-distance workstation connections
-
Rack-to-equipment installations
-
Control rooms
-
Medical environments
-
Industrial systems
-
Professional AV infrastructure
USB Power Delivery up to 60W
Supports up to 60W Power Delivery at 20V/3A for cable lengths up to 10 meters.
For cable lengths beyond 10 meters, Power Delivery supports up to 40W.
| Cable Length | Maximum PD |
|---|---|
| Up to 10m | 60W |
| Over 10m, up to 15m | 40W |
Actual power delivery depends on the USB-C source, connected device, cable configuration, and USB Power Delivery implementation.
Strong EMI Resistance
Optical transmission provides strong resistance to electromagnetic interference, making the cable suitable for electrically demanding environments.
Recommended for:
-
Industrial automation
-
Medical imaging
-
Data centers
-
Control rooms
-
High-density electronic systems
-
Professional AV installations
Slim 6.5mm Construction
With an outer diameter of approximately 6.5mm, the cable is designed to remain relatively compact and flexible despite its long-distance active optical architecture.
The slim profile helps simplify:
-
Rack cable management
-
Equipment routing
-
Tight installation spaces
-
Professional workstation setups
-
Long-distance AV infrastructure
Professional Applications
Data Centers
Designed for high-density infrastructure where USB-C equipment must be connected across racks, equipment zones, or management stations.
Medical Imaging
Suitable for compatible imaging systems and peripherals where long-distance connectivity and EMI resistance are important.
Industrial Automation
Designed for USB-C equipment deployed around industrial machinery, control systems, automation equipment, and electrically noisy environments.
Professional Workstations
Provides long-distance connectivity between USB-C workstations, displays, peripherals, storage equipment, and other professional devices.
Digital Signage
Suitable for extended USB-C display installations where the source equipment needs to be positioned away from the display.
Professional AV
Useful for conference rooms, control rooms, professional displays, and other AV installations requiring combined USB data and video connectivity.
Technical Specifications
| Specification | Details |
|---|---|
| Product Type | USB-C to USB-C Full-Function Active Optical Cable |
| Connector | USB-C Male to USB-C Male |
| Maximum USB Data Rate | Up to 10Gbps |
| Fiber Type | OM3/OM4 Multimode Fiber |
| Maximum Cable Length | Up to 15m |
| Configuration A | 4-Lane DisplayPort 2.1 |
| Configuration B | 2-Lane DisplayPort 1.4 + USB 3.2 |
| Power Delivery ≤10m | Up to 60W / 20V 3A |
| Power Delivery >10m | Up to 40W |
| Cable Diameter | Approx. 6.5mm |
| Transmission Technology | Active Optical |
| EMI Performance | Strong EMI Resistance |
| USB 2.0 Support | Configuration Dependent |
| USB 1.1 Support | Configuration Dependent |
| Application | Data Center / Medical / Industrial / AV |
One USB-C Connection for Multiple Functions
The main advantage of this full-function optical cable is its ability to combine multiple interfaces into one long-distance USB-C connection.
Depending on the selected configuration, it can provide:
High-Speed USB Data + DisplayPort Video + USB Power Delivery
This reduces cable complexity while allowing the host computer and connected equipment to be physically separated over longer distances.
For professional infrastructure, this can simplify cable routing and provide a cleaner installation compared with deploying multiple independent connections.
Configuration Selection
Choose Option A When Display Is the Priority
4-Lane DisplayPort 2.1
Best suited for systems requiring a full 4-lane DisplayPort connection for high-resolution display applications.
Choose Option B When Data + Display Are Required
2-Lane DisplayPort 1.4 + USB 3.2
Best suited for USB-C systems that need simultaneous display output and high-speed USB data transmission.
This configuration is particularly useful for workstations, professional AV, conference systems, and docking applications.
Compatibility Notes
-
USB data performance is up to 10Gbps with compatible equipment.
-
For DisplayPort video, the USB-C source must support the applicable DisplayPort Alt Mode implementation.
-
Actual display resolution and refresh rate depend on the source device, GPU, display, DisplayPort configuration, and system architecture.
-
Power Delivery is up to 60W for lengths up to 10m and up to 40W for longer configurations up to 15m.
-
USB 2.0/1.1 compatibility depends on the selected configuration.
-
The cable is designed for professional long-distance installations; avoid excessive bending, pulling, or crushing.
-
Custom lengths can be considered for OEM and project requirements.
B2B & Project Applications
Ideal for:
-
Data center infrastructure
-
Medical imaging systems
-
Industrial automation
-
Control rooms
-
Professional workstations
-
Digital signage
-
Professional AV
-
High-resolution display systems
-
USB-C docking environments
-
Industrial computers
-
OEM equipment integration
-
Custom long-distance USB-C installations
Custom cable lengths and configuration options are available for professional projects.
