Fiberusbc

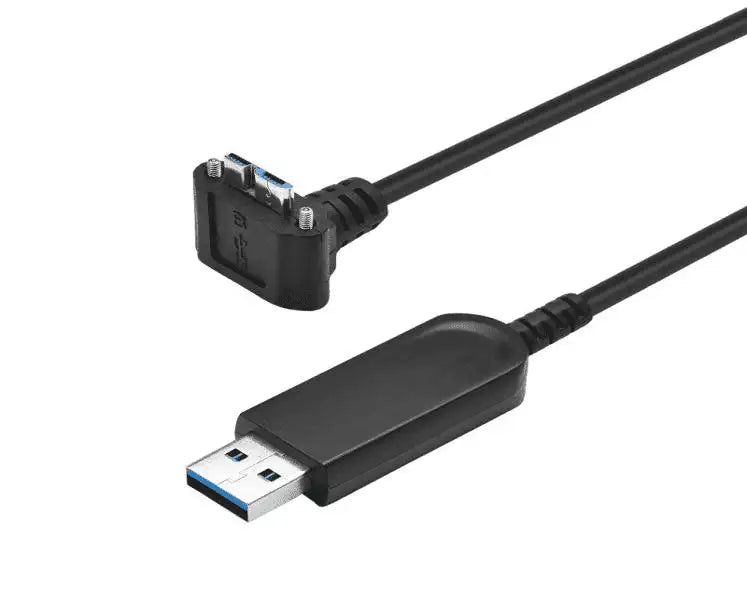

90° USB 3.2 Gen 1 USB-A to Micro-B Active Optical Cable – 5Gbps, 50m

90° USB 3.2 Gen 1 USB-A to Micro-B Active Optical Cable – 5Gbps, 50m

常规价格 $150.00 USD
常规价格 促销价 $150.00 USD
促销 售罄
已含税费。
数量


50m Active Optical USB 3.2 Gen 1 Connectivity with 90° Design

The 90° USB 3.2 Gen 1 USB-A to Micro-B Active Optical Cable provides up to 5Gbps SuperSpeed data transmission over distances up to 50 meters, using OM3/OM4 multimode fiber for long-distance USB connectivity.

Designed for professional installations where equipment must be positioned far from the USB host, this active optical cable combines a 90° connector configuration with a USB-A male to Micro-B connection for space-constrained environments.

The cable is specifically designed for USB 3.2 Gen 1 systems and does not support backward compatibility with USB 2.0 or USB 1.1 devices. This dedicated high-speed architecture makes it suitable for long-distance applications requiring USB 3.2 Gen 1 performance.

Key Features

  • Up to 5Gbps SuperSpeed — Supports USB 3.2 Gen 1 data transmission up to 5Gbps.

  • Up to 50m Transmission Distance — Extends USB 3.2 Gen 1 connectivity over long distances.

  • Active Optical Technology — Uses optical transmission for extended-distance USB connectivity.

  • OM3/OM4 Multimode Fiber — Designed for high-speed optical transmission.

  • 90° Connector Design — Helps optimize cable routing in confined equipment spaces.

  • USB-A Male to Micro-B — Designed for Micro-B equipped cameras, imaging equipment, and specialized peripherals.

  • USB 3.2 Gen 1 Only — Not backward compatible with USB 2.0 or USB 1.1 devices.

  • Custom Length Available — Supports project-specific cable length requirements.

  • Professional Applications — Suitable for industrial automation, medical imaging racks, data center and server management environments.

50m Long-Distance USB 3.2 Gen 1

Up to 5Gbps SuperSpeed Performance

The cable supports data rates up to 5Gbps, providing high-speed connectivity for compatible USB 3.2 Gen 1 systems.

Its active optical architecture is designed for applications where a standard copper USB connection cannot provide the required physical reach.

50m Active Optical Transmission

With a maximum length of 50 meters, the cable provides extended connectivity between USB hosts and Micro-B peripherals.

This allows equipment to be positioned across:

  • Server rooms

  • Equipment racks

  • Medical imaging areas

  • Industrial production lines

  • Control rooms

  • Specialized equipment rooms

90° Design for Confined Spaces

The 90° connector configuration helps redirect the cable immediately after the USB port.

This is useful when equipment is installed in:

  • Server racks

  • Equipment cabinets

  • Medical imaging racks

  • Industrial control panels

  • Tight machine enclosures

  • Confined equipment spaces

The right-angle configuration can help reduce the clearance required behind or beside the connected equipment.

USB-A Male to Micro-B

The cable uses a USB Type-A male to Micro-B configuration.

It is designed for equipment using Micro-B USB interfaces, including selected industrial cameras, imaging equipment, embedded systems, and specialized USB peripherals.

USB 3.2 Gen 1 Only — No USB 2.0 / 1.1 Compatibility

This cable is designed specifically for USB 3.2 Gen 1 operation.

It does not support backward compatibility with USB 2.0 or USB 1.1 devices.

This distinction should be considered when selecting the cable for system integration. Both the host and connected peripheral should support the required USB 3.2 Gen 1 interface.

Professional Applications

Industrial Automation

Suitable for connecting USB 3.2 Gen 1 equipment across production areas where the host computer and peripheral must be physically separated.

Medical Imaging Racks

Designed for selected medical imaging environments where equipment is installed in separate racks or equipment areas and long-distance USB connectivity is required.

Server & Data Center Management

The 50m reach can provide installation flexibility for selected server management and USB peripheral applications across equipment rooms and rack environments.

Industrial Vision & Imaging

Suitable for high-speed USB 3.2 Gen 1 imaging devices using Micro-B interfaces where long-distance connectivity is required.

Confined Equipment Installations

The 90° connector is particularly useful when conventional straight connectors require excessive clearance around the equipment.

Technical Specifications

Specification Details
Product Type 90° USB 3.2 Gen 1 Active Optical Cable
USB Standard USB 3.2 Gen 1
Maximum Data Rate Up to 5Gbps
Maximum Length 50m
Custom Length Available
Fiber Type OM3/OM4 Multimode Fiber
Transmission Technology Active Optical
Host Connector USB Type-A Male
Device Connector USB Micro-B
Connector Configuration A Male to Micro-B
Connector Design 90°
USB 2.0 Compatibility Not Supported
USB 1.1 Compatibility Not Supported
Primary Applications Industrial / Medical / Data Center

Why Choose a 90° 50m Active Optical USB Cable?

This cable addresses three installation challenges at the same time:

Long Distance
Up to 50m USB 3.2 Gen 1 connectivity.

High-Speed Optical Transmission
Up to 5Gbps using an active optical architecture and OM3/OM4 multimode fiber.

Space-Constrained Installation
The 90° connector helps simplify routing around racks, cabinets, panels, and other confined equipment spaces.

This combination makes it suitable for professional installations where high-speed USB connectivity, extended distance, and compact connector routing are required.

B2B & Project Applications

Suitable for:

  • Industrial automation

  • Industrial imaging

  • Machine vision

  • Medical imaging systems

  • Medical equipment racks

  • Server management

  • Data center infrastructure

  • Equipment cabinets

  • Control rooms

  • Industrial control systems

  • Specialized USB peripherals

  • System integration projects

OEM & Custom Cable Supply

Custom cable lengths are available for OEM and project applications.

System integrators, industrial equipment manufacturers, medical equipment suppliers, data center integrators, and distributors can specify cable length and application requirements according to system architecture and installation environment.

Compatibility Note:
This cable is designed for USB 3.2 Gen 1 systems and does not support USB 2.0 or USB 1.1 devices. Up to 5Gbps performance requires compatible USB 3.2 Gen 1 host and peripheral equipment. Actual transmission performance may depend on the connected equipment, system configuration, cable length, and installation environment.





SKU: SRMB-3000
