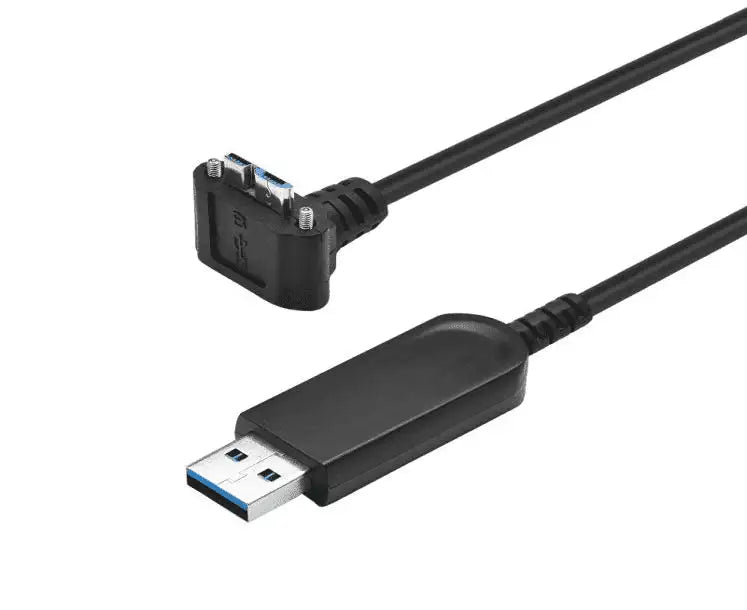

90° Drag Chain USB 3.2 Gen 1 USB-A to Micro-B Fiber Optic Cable – 5Gbps, 15m

90° Drag Chain USB 3.2 Gen 1 USB-A to Micro-B Fiber Optic Cable – 5Gbps, 15m

常规价格 $150.00 USD
常规价格 促销价 $150.00 USD
促销 售罄
已含税费。
数量


High-Speed USB Connectivity for Moving Industrial Equipment

The 90° Drag Chain USB 3.2 Gen 1 USB-A to Micro-B Fiber Optic Cable supports up to 5Gbps SuperSpeed data transmission over distances up to 15 meters, using OM3/OM4 multimode fiber for extended-distance USB connectivity.

Designed for equipment with continuous or repetitive movement, the cable combines a 90° connector configuration with a drag-chain construction rated for up to 20 million flex cycles.

The USB Type-A male to Micro-B configuration makes it suitable for industrial cameras, machine vision equipment, inspection systems, robotic equipment, and other USB peripherals using a Micro-B interface.

Key Features

  • Up to 5Gbps SuperSpeed — Supports USB 3.2 Gen 1 data rates up to 5Gbps.

  • Up to 15m Length — Provides extended USB connectivity for industrial equipment.

  • Custom Length Available — Cable length can be adapted for specific machine layouts and project requirements.

  • 90° Connector Design — Helps optimize cable routing in compact or space-constrained equipment.

  • Drag Chain Construction — Designed for applications involving repeated cable movement.

  • Up to 20 Million Flex Cycles — Designed for continuous-motion industrial applications.

  • USB-A Male to Micro-B — Suitable for industrial cameras and Micro-B equipped peripherals.

  • Up to 5V/900mA Power Delivery — Supports power delivery for compatible devices.

  • OM3/OM4 Multimode Fiber — Designed for extended-distance optical USB transmission.

Designed for Continuous-Motion USB Applications

5Gbps USB 3.2 Gen 1 Performance

The cable supports up to 5Gbps SuperSpeed data transmission, providing high-speed connectivity for compatible USB 3.2 Gen 1 equipment.

It is designed for applications where USB devices need to operate at a distance from the host while the cable is also exposed to repeated mechanical movement.

20 Million Flex-Cycle Drag Chain Design

Continuous movement is one of the key challenges in industrial cable installations.

The cable is designed for use inside drag chains and cable carriers, with a specified durability of up to 20 million flex cycles.

This makes it suitable for machinery where the cable repeatedly moves along a fixed path.

Typical applications include:

  • CNC machines

  • Industrial robots

  • Machine vision systems

  • Automated inspection equipment

  • Pick-and-place machines

  • Linear motion systems

  • Automated production equipment

90° Connector for Better Cable Routing

The 90° connector design changes the cable exit direction compared with a standard straight connector.

This can help reduce the space required around the USB port and minimize sharp bends near the connector.

It is particularly useful when USB ports are positioned close to machine frames, equipment panels, walls, or other structural components.

USB-A to Micro-B

The cable features a USB Type-A male to Micro-B configuration.

This makes it suitable for Micro-B equipped devices such as:

  • Industrial cameras

  • Machine vision cameras

  • Inspection equipment

  • Embedded systems

  • Industrial sensors

  • Specialized USB peripherals

Up to 5V / 900mA Power

The cable supports power delivery up to 5V/900mA for compatible USB devices.

This allows the USB connection to carry both data and power within the specified electrical capability of the system.

Professional Applications

Machine Vision

Connect industrial cameras to host computers while allowing cameras to move along production equipment or inspection systems.

Industrial Automation

Designed for automated machinery where USB peripherals operate on moving axes or within cable carriers.

Robotics

Suitable for USB-connected cameras, sensors, and peripherals installed on robotic or automated equipment.

Automated Inspection

Useful for inspection systems where cameras and USB devices repeatedly move along a production or measurement path.

CNC & Motion Equipment

The drag-chain design is suited to machinery where cables experience repeated bending during normal operation.

Technical Specifications

Specification Details
Product Type 90° Drag Chain USB 3.2 Gen 1 Fiber Optic Cable
USB Standard USB 3.2 Gen 1
Maximum Data Rate Up to 5Gbps
Maximum Length 15m
Custom Length Available
Fiber Type OM3/OM4 Multimode Fiber
Host Connector USB Type-A Male
Device Connector USB Micro-B
Connector Configuration A Male to Micro-B
Connector Design 90°
Maximum Power Delivery 5V / 900mA
Drag Chain Durability Up to 20 Million Flex Cycles
Application Industrial Automation / Machine Vision / Robotics

Why Choose a 90° Drag Chain USB Fiber Cable?

This cable combines four important features for moving industrial equipment:

5Gbps USB 3.2 Gen 1
High-speed data connectivity for compatible equipment.

Up to 15m
Extended reach for larger machine layouts.

90° Connector
More efficient cable routing around equipment and machine structures.

20 Million Flex Cycles
Designed for repeated movement inside drag chains and cable carriers.

Together, these features make the cable particularly suitable for continuous-motion USB applications where a standard USB cable may not be designed for the mechanical demands of the installation.

B2B & Project Applications

Suitable for:

  • Industrial automation

  • Machine vision

  • Industrial cameras

  • Robotic systems

  • CNC equipment

  • Automated inspection

  • Linear motion systems

  • Pick-and-place machines

  • Production lines

  • Moving-axis equipment

  • Factory automation

  • OEM machine integration

OEM & Custom Cable Supply

Custom cable lengths are available for OEM and project applications.

System integrators, automation equipment manufacturers, industrial camera suppliers, and distributors can specify cable length and application requirements according to machine architecture, movement pattern, connector orientation, and installation environment.

Compatibility Note:
5Gbps performance requires compatible USB 3.2 Gen 1 host and peripheral equipment. Power delivery is supported up to 5V/900mA for compatible devices. The stated 20 million flex-cycle rating represents the specified durability under applicable test conditions; actual service life depends on bending radius, movement speed, drag-chain configuration, installation conditions, and operating environment.




SKU: SSMB-3120
