High-Speed USB Connectivity for Continuous-Motion Industrial Systems

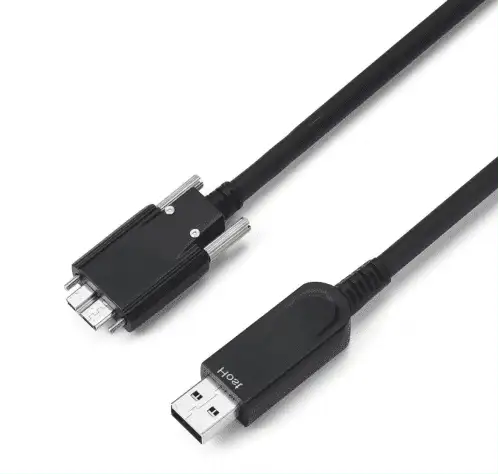

The Drag Chain USB 3.2 Gen 1 USB-A to Micro-B Fiber Optic Cable supports up to 5Gbps SuperSpeed data transmission over distances up to 15 meters, using OM3/OM4 multimode fiber for extended-distance connectivity.
Designed specifically for industrial systems involving continuous cable movement, the cable features a drag-chain construction rated for up to 20 million flex cycles, helping provide reliable connectivity in automated machinery and moving equipment.
With a USB Type-A male to Micro-B configuration, support for up to 5V/900mA power delivery, and custom length availability, this cable is suited for industrial cameras, machine vision systems, automation equipment, inspection systems, and other USB-connected devices installed on moving axes.
Key Features
-
Up to 5Gbps SuperSpeed — Supports USB 3.2 Gen 1 data rates up to 5Gbps.
-
15m Maximum Length — Designed for extended USB connectivity in industrial installations.
-
Custom Lengths Available — Cable lengths can be adapted for project-specific requirements.
-
Drag Chain Rated — Designed for continuous movement applications with durability rated up to 20 million cycles.
-
USB-A Male to Micro-B — Suitable for Micro-B equipped cameras, sensors, industrial peripherals, and embedded equipment.
-
Up to 5V/900mA Power Delivery — Supports power delivery up to 5V/900mA for compatible USB devices.
-
OM3/OM4 Multimode Fiber — Provides optical transmission for extended-distance USB connectivity.
-
Industrial Applications — Designed for automation, machine vision, inspection, robotics, and other moving equipment.
Built for Continuous-Motion Applications
5Gbps USB 3.2 Gen 1 Performance
The cable supports up to 5Gbps SuperSpeed data transmission, providing high-speed connectivity for compatible USB 3.2 Gen 1 systems.
This makes it suitable for applications such as industrial cameras, machine vision equipment, automated inspection systems, and other USB peripherals requiring high-speed data transfer while operating at a distance from the host system.
Drag Chain Construction – Up to 20 Million Cycles
Continuous movement can place significant mechanical stress on conventional USB cables.
This cable is designed for drag chain applications where the cable repeatedly bends and moves along a defined machine axis.
With durability rated for up to 20 million flex cycles, it is intended for long-term use in automated equipment and moving machinery.
Typical applications include:
-
CNC and machining equipment
-
Automated production lines
-
Robotic systems
-
Machine vision systems
-
Pick-and-place equipment
-
Automated inspection systems
-
Linear motion systems
-
Industrial equipment with moving axes
USB-A Male to Micro-B
The cable uses a USB Type-A male to Micro-B configuration, making it suitable for devices equipped with a Micro-B interface.
Typical devices can include industrial cameras, embedded systems, sensors, inspection equipment, and specialized USB peripherals.
Up to 5V / 900mA Power Delivery
The cable supports power delivery of up to 5V/900mA for compatible USB devices.
This allows the USB connection to carry both data and power within the supported electrical specifications of the connected equipment.
Up to 15m with Custom Length Options
The standard maximum cable length is 15 meters, providing extended connectivity between the USB host and moving equipment.
For OEM and industrial projects, custom cable lengths can be evaluated according to equipment layout and installation requirements.
Professional Applications
Industrial Automation
Designed for automated production equipment where USB-connected devices move continuously along machine axes.
Machine Vision
Suitable for connecting industrial cameras and vision systems mounted on moving machinery.
Robotic Equipment
Useful for USB-connected sensors, cameras, controllers, and peripherals installed on robotic or automated platforms.
Automated Inspection
Provides extended USB connectivity for inspection cameras and equipment operating on linear or multi-axis motion systems.
CNC & Motion-Control Equipment
Suitable for machinery where cables must repeatedly flex inside cable carriers or drag chains.
Technical Specifications
| Specification |
Details |
| Product Type |
Drag Chain USB 3.2 Gen 1 Fiber Optic Cable |
| USB Standard |
USB 3.2 Gen 1 |
| Maximum Data Rate |
Up to 5Gbps |
| Maximum Length |
15m |
| Custom Length |
Available |
| Fiber Type |
OM3/OM4 Multimode Fiber |
| Host Connector |
USB Type-A Male |
| Device Connector |
USB Micro-B |
| Connector Configuration |
A Male to Micro-B |
| Maximum Power Delivery |
5V / 900mA |
| Drag Chain Durability |
Up to 20 Million Flex Cycles |
| Application |
Industrial Automation / Machine Vision / Robotics |
Why Drag Chain USB Fiber?
A conventional USB cable may not be designed for continuous mechanical movement. In automated machinery, repeated bending can become a major consideration for cable selection.
This cable combines:
5Gbps USB + Optical Transmission + Drag Chain Durability
The result is a USB connectivity solution designed specifically for applications where the cable must both carry high-speed data and withstand repeated mechanical movement.
The drag-chain construction makes it particularly suitable for machines with linear motion, robotic movement, automated inspection, and continuous production cycles.
B2B & Project Applications
Suitable for:
OEM & Custom Cable Supply
Custom cable lengths are available for project-based applications. OEMs, system integrators, automation equipment manufacturers, and distributors can specify cable length and application requirements according to machine architecture and installation conditions.
Compatibility Note:
5Gbps performance requires compatible USB 3.2 Gen 1 host and peripheral equipment. Power delivery is supported up to 5V/900mA for compatible devices. The stated 20 million flex-cycle rating represents the cable's specified durability under applicable test conditions; actual service life depends on bending radius, drag-chain design, movement speed, installation conditions, and operating environment.
SKU: SUMB-3220
