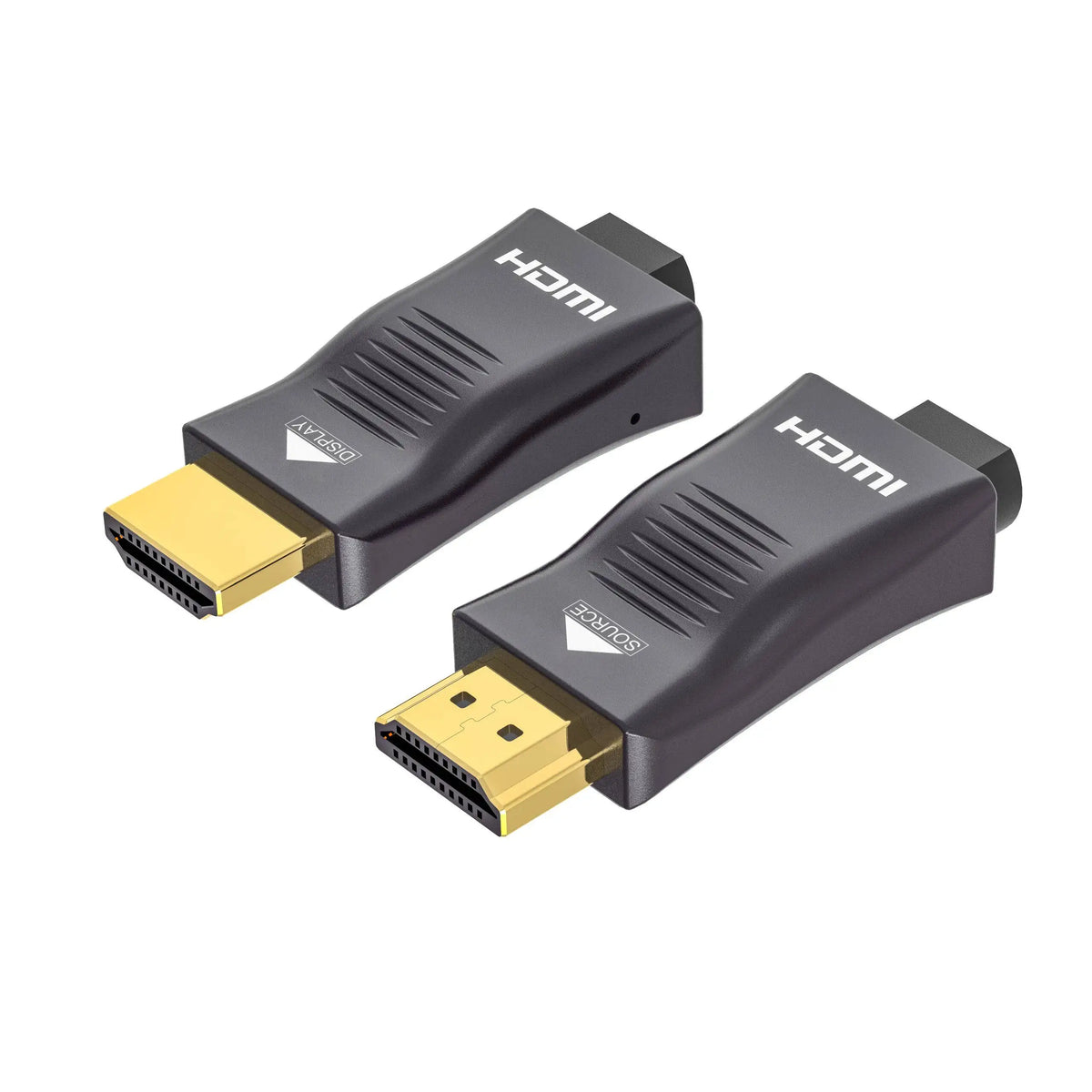

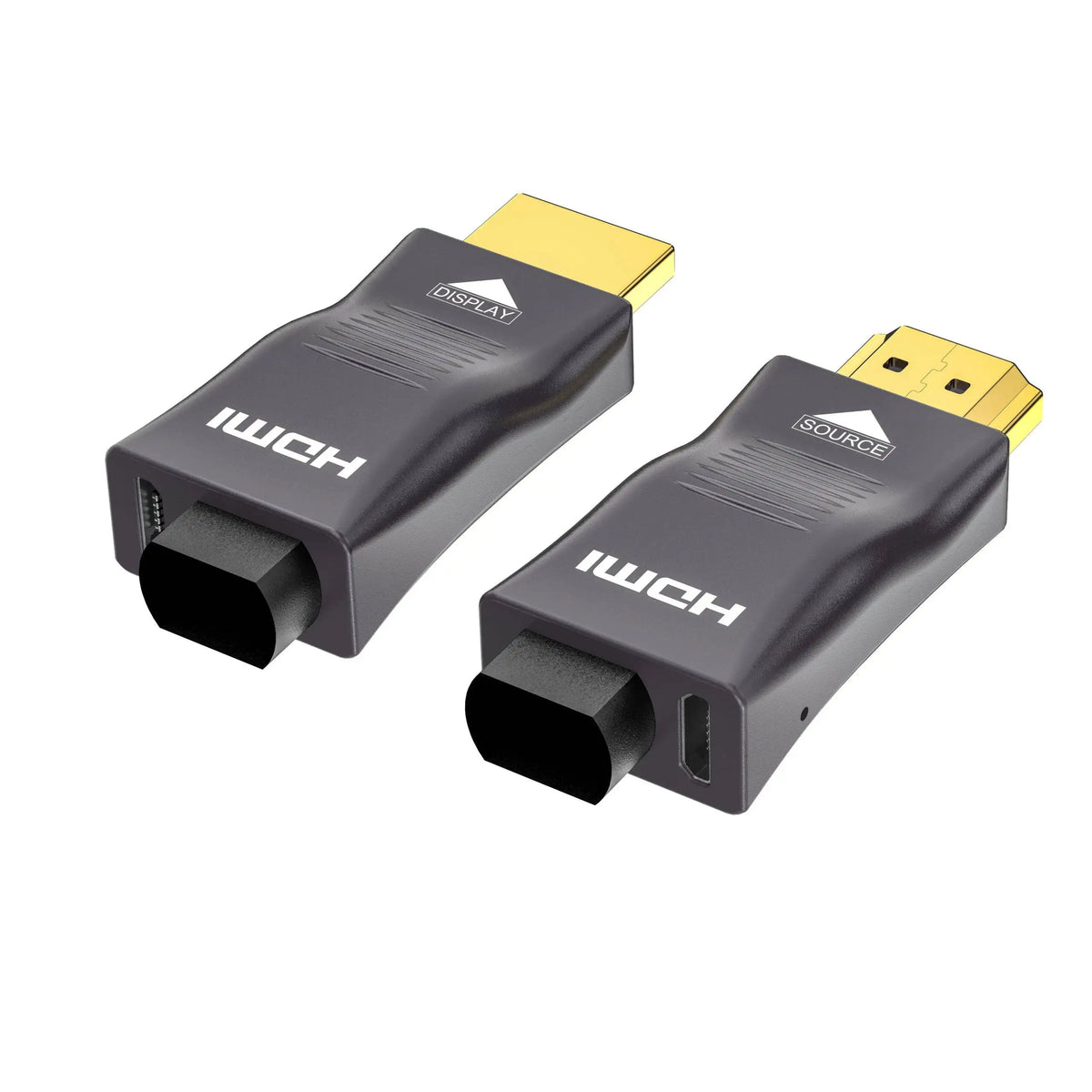

Detachable 8K Fiber Optical HDMI MPO Cable Extender Kit

Detachable 8K Fiber Optical HDMI MPO Cable Extender Kit

常规价格 $80.00 USD
常规价格 促销价 $80.00 USD
促销 售罄
已含税费。
数量

SAVLINK 8K HDMI 2.1 Fiber Optic Extender Kit – 48Gbps, 8K@60Hz

The SAVLINK 8K HDMI 2.1 Fiber Optic Extender Kit is a professional long-distance HDMI connectivity solution designed for high-bandwidth ProAV, home theater, broadcast, esports, medical imaging, and other demanding video applications.

Built around a pure fiber optic architecture, the system supports up to 48Gbps bandwidth, 8K@60Hz, and 4K@120Hz on compatible HDMI 2.1 systems. It also supports advanced video and audio features including HDR, VRR, ALLM, QFT, QMS, ARC/eARC, and HDCP 2.3, providing a comprehensive connectivity platform for next-generation AV systems.

Unlike conventional fixed HDMI fiber cables, the SAVLINK extender uses a modular MPO-based fiber architecture with replaceable HDMI connector assemblies. This allows HDMI interfaces to be replaced independently during installation or maintenance without replacing the entire fiber infrastructure, helping reduce downtime and simplify future system upgrades.

The pure fiber transmission path provides strong immunity to EMI/RFI and low signal attenuation over long distances, making the system suitable for environments where electromagnetic interference and installation distance are major considerations.

An ultra-slim and flexible LSZH fiber cable simplifies routing through conduits, walls, equipment racks, and other confined spaces. The system operates with a 5V USB power supply, while its low-power architecture and auto-standby function help reduce power consumption during periods of inactivity.

Key Features

  • 48Gbps HDMI 2.1 Bandwidth – Designed for high-bandwidth HDMI 2.1 applications requiring up to 48Gbps transmission.

  • 8K@60Hz & 4K@120Hz – Supports next-generation high-resolution video on compatible HDMI 2.1 source and display systems.

  • Pure Fiber Optical Architecture – Uses optical transmission for long-distance HDMI connectivity with low attenuation and strong EMI/RFI immunity.

  • MPO Modular Fiber Design – Modular MPO connectivity simplifies installation, maintenance, and system upgrades.

  • Replaceable HDMI Connector Assemblies – HDMI connector components can be replaced independently without replacing the entire fiber cable infrastructure.

  • HDR Support – Supports HDR, HDR10+, and Dolby Vision for compatible video systems.

  • Advanced Gaming Features – Supports VRR, ALLM, QFT, and QMS for compatible HDMI 2.1 gaming systems.

  • ARC / eARC Support – Supports audio return functionality for compatible AV systems.

  • High-Bandwidth Audio – Designed to support advanced multichannel audio formats including Dolby Atmos, DTS:X, and Dolby TrueHD on compatible systems.

  • Bidirectional Communication – 7-core OM3 multimode fiber architecture supports signal communication required for EDID and HDCP management.

  • EDID Auto-Negotiation – Designed for automatic display capability negotiation and plug-and-play system integration.

  • HDCP Support – Supports HDCP 1.4, 2.2, and 2.3 for compatible AV equipment.

  • Ultra-Slim LSZH Cable – Lightweight, flexible, and suitable for tight-space and in-wall cable routing.

  • Low-Power Architecture – Designed for efficient operation with automatic standby functionality.

  • 5V USB Powered – Uses a 5V USB power source for system operation.

  • OEM / ODM Ready – Suitable for custom configurations and professional project requirements.

Modular MPO Architecture

Traditional HDMI fiber cables are often manufactured as a complete fixed assembly. If the connector is damaged or the interface specification needs to change, the entire cable may need to be replaced.

The SAVLINK system takes a different approach with its MPO-based modular architecture.

The optical fiber infrastructure can remain installed while the HDMI connector assembly can be replaced independently. This makes the system particularly valuable for in-wall installations, equipment racks, broadcast infrastructure, commercial AV projects, and long-term professional deployments where future maintenance and upgrades need to be considered from the beginning.

Professional Applications

8K Home Theater

Designed for high-end home theater systems requiring long-distance HDMI 2.1 connectivity, 8K video, advanced HDR formats, and high-bandwidth audio.

Professional AV & ProAV

Suitable for AV integrators, system installers, commercial displays, video processors, projectors, and other professional HDMI 2.1 infrastructure.

Broadcast & Production

The modular fiber architecture provides a practical solution for professional video production environments where reliable long-distance signal transmission and serviceability are important.

Esports & Gaming

Supports HDMI 2.1 gaming features such as 4K@120Hz, VRR, ALLM, QFT, and QMS on compatible gaming hardware and displays.

Medical Imaging

Pure optical transmission and strong EMI immunity make the system suitable for specialized medical imaging and professional visualization environments, subject to system and regulatory requirements.

Digital Signage & Large Displays

Suitable for long-distance connections between media sources, processors, displays, and large-format visual systems.

In-Wall Installations

The slim LSZH fiber cable and modular connector architecture simplify routing through walls, conduits, and other restricted installation pathways.

Technical Specifications

Specification Details
Product Type HDMI 2.1 Fiber Optic Extender Kit
HDMI Version HDMI 2.1
Bandwidth Up to 48Gbps
Video Resolution Up to 8K@60Hz*
4K Support Up to 4K@120Hz*
Fiber Architecture Pure Optical Fiber
Fiber Type 7-Core OM3 Multimode Fiber
Fiber Interface MPO Modular
HDMI Interface Modular / Replaceable HDMI Connector Assembly
HDR HDR, HDR10+, Dolby Vision*
Gaming Features VRR, ALLM, QFT, QMS*
Audio Dolby Atmos, DTS:X, Dolby TrueHD*
Audio Return ARC / eARC*
HDCP 1.4 / 2.2 / 2.3
EDID Auto-Negotiation
CEC Supported*
Cable Jacket LSZH
Power 5V USB
Standby Auto Standby
Installation Plug and Play / Driver-Free
EMI / RFI Strong Immunity
Compatibility HDMI 2.1 / 2.0 / 1.4
Customization OEM / ODM Available

*Actual video resolution, HDR format, audio format, refresh rate, gaming features, ARC/eARC, CEC, and other functions depend on the connected source, display, AV equipment, HDMI implementation, system configuration, and transmission distance.

CEC note: For reliable CEC operation, connect both ends of the system to a stable 5V USB power source as specified by the installation requirements.

Designed for Long-Term ProAV Infrastructure

The SAVLINK HDMI 2.1 Fiber Optic Extender Kit is designed not only for high-bandwidth signal transmission, but also for installation flexibility and long-term serviceability.

The combination of pure fiber transmission, MPO modularity, replaceable HDMI interfaces, slim LSZH construction, and USB-powered operation allows system integrators to build HDMI infrastructure that can be installed in difficult locations while remaining accessible for future maintenance.

This makes the system particularly suitable for projects where replacing an entire cable after installation would be costly or impractical.

B2B & Project Applications

Ideal for:

  • Professional AV integrators

  • ProAV system installers

  • Home theater integrators

  • Broadcast system integrators

  • Esports and gaming venues

  • Medical imaging system integrators

  • Digital signage companies

  • Commercial display projects

  • Equipment rack installations

  • In-wall AV infrastructure

  • Large-format display systems

  • OEM / ODM projects

  • Fiber infrastructure distributors

For OEM, ODM, and large-scale projects, provide the required transmission distance, HDMI connector configuration, fiber architecture, quantity, application environment, and required HDMI 2.1 features for project evaluation.

Frequently Asked Questions

What is an HDMI 2.1 fiber optic extender kit?

It is a long-distance HDMI connectivity system that uses optical fiber to transmit high-bandwidth HDMI signals between source and display equipment. The SAVLINK system uses a modular MPO-based architecture for professional installation and maintenance.

Does it support 48Gbps HDMI 2.1?

Yes. The system is designed to support up to 48Gbps bandwidth for compatible HDMI 2.1 applications.

Does it support 8K@60Hz?

Yes. It is designed to support up to 8K@60Hz on compatible HDMI 2.1 source and display systems.

Does it support 4K@120Hz?

Yes. It supports up to 4K@120Hz on compatible HDMI 2.1 systems.

What makes the MPO design different from a standard HDMI fiber cable?

The MPO-based architecture provides a modular fiber connection system. The HDMI connector assembly can be replaced independently, helping simplify maintenance and future upgrades without necessarily replacing the installed fiber infrastructure.

Is the system suitable for in-wall installation?

Yes. The slim LSZH fiber cable and modular connector design are suitable for in-wall, conduit, equipment rack, and other restricted-space installations, subject to local installation requirements.

Does it support HDR and Dolby Vision?

The system is designed to support HDR, HDR10+, and Dolby Vision on compatible source, display, and AV equipment.

Does it support gaming features?

Yes. Compatible systems can support HDMI 2.1 features including VRR, ALLM, QFT, and QMS.

Does it support eARC?

Yes. The system is designed to support ARC/eARC on compatible HDMI devices and system configurations.

Does the extender require external power?

The system uses a 5V USB power supply. For reliable CEC operation, both ends should be connected to a stable 5V USB power source according to the installation requirements.

Is the system suitable for professional AV projects?

Yes. It is designed for applications including ProAV, broadcast, 8K home theater, esports, digital signage, medical imaging, and commercial display installations.

Can the HDMI connectors be replaced?

Yes. One of the key features of the system is its modular, replaceable HDMI connector architecture, which is designed to simplify maintenance and future system upgrades.

Is OEM/ODM customization available?

Yes. OEM/ODM configurations can be considered for professional projects. Provide the required transmission distance, connector configuration, fiber structure, quantity, and application requirements for evaluation.

SKU: SHMP-9860
