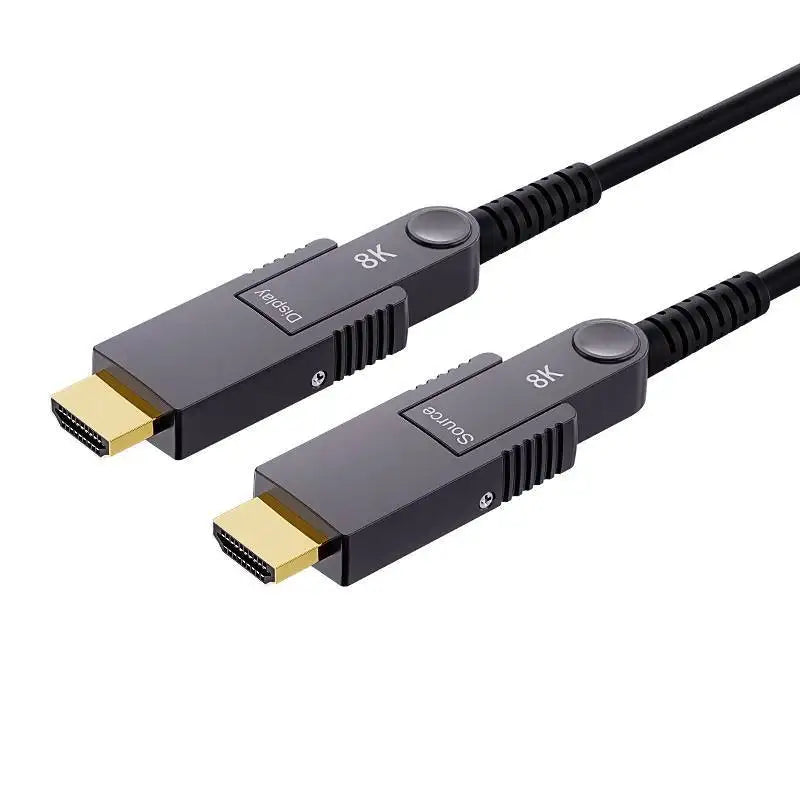

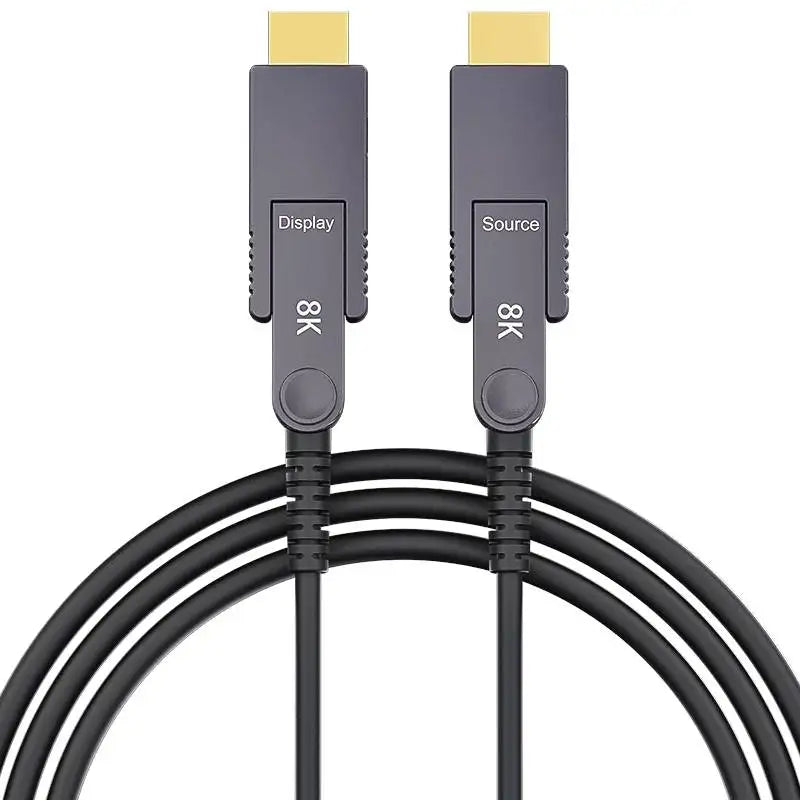

Detachable HDMI Type D-D 10M(33ft) Active Optical Cable, 48Gbps 8K@60Hz and 4K@120Hz

Detachable HDMI Type D-D 10M(33ft) Active Optical Cable, 48Gbps 8K@60Hz and 4K@120Hz

常规价格 $50.00 USD
常规价格 促销价 $50.00 USD
促销 售罄
已含税费。
数量

HDMI 2.1 Type D to Type D Detachable Active Optical Cable – 48Gbps, 8K@60Hz

The HDMI 2.1 Type D-to-D Detachable Active Optical Cable is designed for high-bandwidth video connectivity between devices equipped with Micro HDMI Type D interfaces, including professional cameras, compact imaging equipment, embedded displays, and specialized video systems.

Supporting up to 48Gbps bandwidth, 8K@60Hz, and 4K@120Hz with 4:4:4, this active optical cable is designed for demanding high-resolution video applications requiring reliable long-distance transmission.

Its key advantage is the detachable connector design. The connectors can be separated from the cable during installation, making it easier to route the cable through conduits, narrow openings, cable trays, and in-wall pathways. After routing, the connectors can be reassembled for final connection, helping simplify installations where a conventional fixed HDMI connector would be difficult to pass through.

The hybrid fiber construction combines optical fiber and copper conductors for active optical transmission, while providing strong immunity to electromagnetic interference. The result is a flexible connectivity solution for professional camera systems, embedded displays, industrial imaging, and custom AV installations.

Key Features

  • 48Gbps HDMI 2.1 Bandwidth – Supports high-bandwidth HDMI 2.1 transmission for demanding professional video applications.

  • 8K@60Hz & 4K@120Hz Support – Designed for high-resolution video transmission up to 8K@60Hz and 4K@120Hz on compatible HDMI systems.

  • 4:4:4 Chroma Support – Supports 4:4:4 video transmission in compatible source and display configurations.

  • Micro HDMI Type D to Type D – Designed for direct connectivity between two devices equipped with Micro HDMI Type D ports.

  • Detachable Connector Design – Connectors can be detached during cable routing to simplify conduit, in-wall, and narrow-opening installations.

  • Active Optical Transmission – Uses optical fiber for long-distance HDMI signal transmission with low signal loss.

  • Strong EMI Immunity – Optical transmission helps reduce susceptibility to electromagnetic interference in demanding installation environments.

  • Hybrid Fiber + Copper Construction – Combines optical fiber and copper conductors in a flexible cable structure.

  • Camera & Embedded System Ready – Designed for professional cameras, compact displays, embedded systems, and specialized imaging equipment.

  • Plug and Play – No additional driver or software installation required.

  • CE / FCC Compliant – Designed for professional and industrial applications.

Professional Applications

Professional Cameras

Designed for cameras and imaging equipment equipped with Micro HDMI Type D interfaces, providing high-bandwidth connectivity for monitors, recorders, capture systems, and other HDMI devices.

Embedded Display Systems

Suitable for embedded displays and compact video systems where Micro HDMI connectivity and flexible cable routing are required.

In-Wall AV Installation

The detachable connector design allows the cable body to be routed through narrow wall openings or conduits before reconnecting the HDMI interfaces.

Conduit & Cable Tray Installation

Detaching the connectors reduces the space required during cable routing, making installation easier in conduits, cable trays, equipment cabinets, and other restricted pathways.

Industrial Imaging

Suitable for industrial cameras, machine vision systems, inspection equipment, and specialized imaging applications requiring high-bandwidth video transmission.

Custom AV Integration

Useful for AV integrators and system installers working on custom video installations where standard HDMI connectors are difficult to route through the planned installation path.

Technical Specifications

Specification Details
Product Type HDMI 2.1 Active Optical Cable
Connector Configuration Micro HDMI Type D to Micro HDMI Type D
Connector Design Detachable
HDMI Version HDMI 2.1
Bandwidth Up to 48Gbps
Resolution Up to 8K@60Hz*
4K Support Up to 4K@120Hz*
Chroma 4:4:4*
Transmission Technology Active Optical
Cable Construction Hybrid Fiber + Copper
Signal Characteristics Low Loss / EMI Resistant
Installation Plug and Play
Routing Conduit / In-Wall / Confined Spaces
Compliance CE / FCC
Primary Applications Cameras, Embedded Displays, Industrial Imaging, Professional AV

*Actual resolution, refresh rate, chroma format, and transmission performance depend on the source device, display, cable length, Micro HDMI implementation, and overall system configuration.

Designed for Difficult Cable Routing

A major challenge with Micro HDMI installations is not always signal transmission—it is physical cable routing.

Conventional Micro HDMI connectors can make it difficult to pass a complete cable assembly through narrow conduits, small wall openings, or tightly routed pathways. The detachable connector design addresses this installation challenge by allowing the connector assembly to be separated from the cable during routing.

This makes the cable particularly suitable for in-wall AV installations, camera systems, embedded displays, equipment cabinets, and custom professional video projects where installation space is limited.

Once the cable has been routed, the connector can be reassembled for the final HDMI connection.

B2B & Project Applications

Ideal for:

  • Professional camera manufacturers

  • Industrial camera manufacturers

  • Machine vision system integrators

  • Embedded display manufacturers

  • Imaging equipment manufacturers

  • Professional AV integrators

  • In-wall AV installation companies

  • Commercial display projects

  • OEM / ODM equipment manufacturers

  • Custom cable projects

  • Bulk and distribution applications

For OEM, ODM, or project requirements, provide the required cable length, connector configuration, detachable connector requirements, quantity, application, and installation environment for a suitable configuration.

Frequently Asked Questions

What connectors does this cable use?

The cable uses Micro HDMI Type D connectors on both ends, making it suitable for connecting two devices equipped with Micro HDMI Type D ports.

What is the purpose of the detachable connector?

The detachable design allows the connector assembly to be removed during installation. This makes it easier to route the cable through conduits, wall openings, cable trays, and other narrow pathways before reconnecting the HDMI interface.

Does it support 8K@60Hz?

Yes. The cable is designed to support up to 8K@60Hz on compatible HDMI 2.1 systems.

Does it support 4K@120Hz?

Yes. It supports up to 4K@120Hz in compatible HDMI 2.1 configurations.

Is this cable suitable for cameras?

Yes. The Type D-to-Type D configuration is designed for cameras and other compact devices equipped with Micro HDMI interfaces.

Is it an active optical cable?

Yes. It uses an active optical transmission architecture with hybrid fiber and copper construction for high-bandwidth HDMI signal transmission.

Is it suitable for in-wall installation?

Yes. The detachable connector design is specifically useful for in-wall, conduit, cable tray, and other confined-space installations where passing a complete HDMI connector through the installation pathway can be difficult.

Does it require external power?

The cable is designed for plug-and-play operation without an external power supply. Actual operation depends on the connected HDMI devices and system configuration.

Can custom lengths be provided?

Custom lengths and configurations can be considered for OEM, ODM, and project requirements. Provide the required length, connector configuration, quantity, and application environment for project evaluation.


SKU: SHDC-9900-010
