USB 3.2 Gen 2 USB-C to USB-C Active Optical Cable – 10Gbps, 60W, 10m

USB 3.2 Gen 2 USB-C to USB-C Active Optical Cable – 10Gbps, 60W, 10m

常规价格 $22.00 USD
常规价格 促销价 $22.00 USD
促销 售罄
已含税费。
数量


Extend USB-C connectivity up to 10 meters with this USB 3.2 Gen 2 Active Optical Cable (AOC), designed for high-speed data transfer, USB-C peripherals, and professional long-distance deployments.

Supporting up to 10Gbps SuperSpeed+ data transfer and up to 60W Power Delivery, this USB-C to USB-C AOC combines fiber-optic and copper transmission technologies to maintain reliable high-speed connectivity over extended distances.

Its true bi-directional design allows data transmission in either direction, while optional 90° right-angle or screw-lock connectors provide greater flexibility for equipment installation, cable routing, and space-constrained applications.

With an ultra-slim OD <5.0mm construction and lengths from 0.2m to 10m, the cable is suitable for VR/AR systems, USB-C cameras, external storage, conference systems, data centers, workstations, and other USB 3.2 Gen 2 applications.

Not compatible with USB4 or Thunderbolt™ devices.

Key Features

10Gbps USB 3.2 Gen 2 Performance

Meets the USB 3.2 Gen 2 specification with data transfer rates up to 10Gbps SuperSpeed+.

The optical transmission architecture is designed to maintain stable high-speed USB connectivity over longer distances than conventional passive copper cables.

Ideal for high-bandwidth applications such as:

  • High-speed external storage

  • USB-C cameras

  • VR/AR peripherals

  • Conference systems

  • Professional workstations

  • Data center equipment

Hybrid Fiber + Copper Architecture

The cable combines optical fiber and copper conductors to support high-speed data transmission together with USB power delivery.

The fiber-based data path provides strong resistance to electromagnetic interference, making the cable suitable for environments with dense cabling, electronic equipment, and other sources of electrical noise.

Up to 60W USB-C Power Delivery

Supports up to 60W Power Delivery for compatible USB-C devices.

This allows a single cable to support high-speed data connectivity while also supplying power to compatible peripherals.

Actual charging power depends on the USB-C host, connected device, PD implementation, and system configuration.

True Bi-Directional Data Transmission

Unlike directional optical cables, this USB-C to USB-C AOC supports bi-directional data transmission.

There is no fixed host-to-device direction requirement for the USB data connection, providing greater flexibility when integrating USB-C peripherals into professional systems.

850nm VCSEL + PIN Photodetector

The optical transmission system uses 850nm VCSEL laser and PIN photodetector technology to convert electrical USB signals into optical signals for long-distance transmission.

This architecture helps maintain high-speed signal integrity while reducing susceptibility to electromagnetic interference.

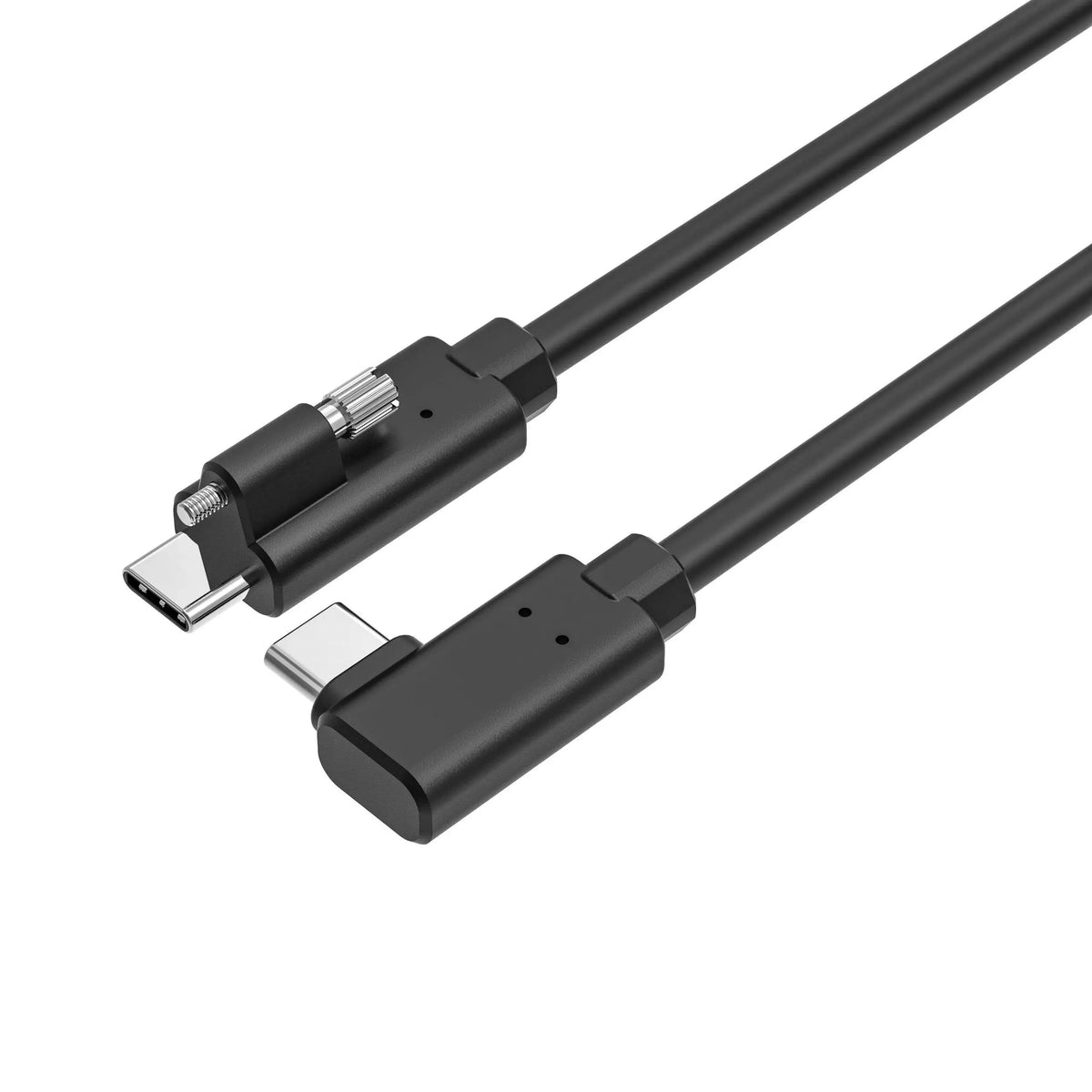

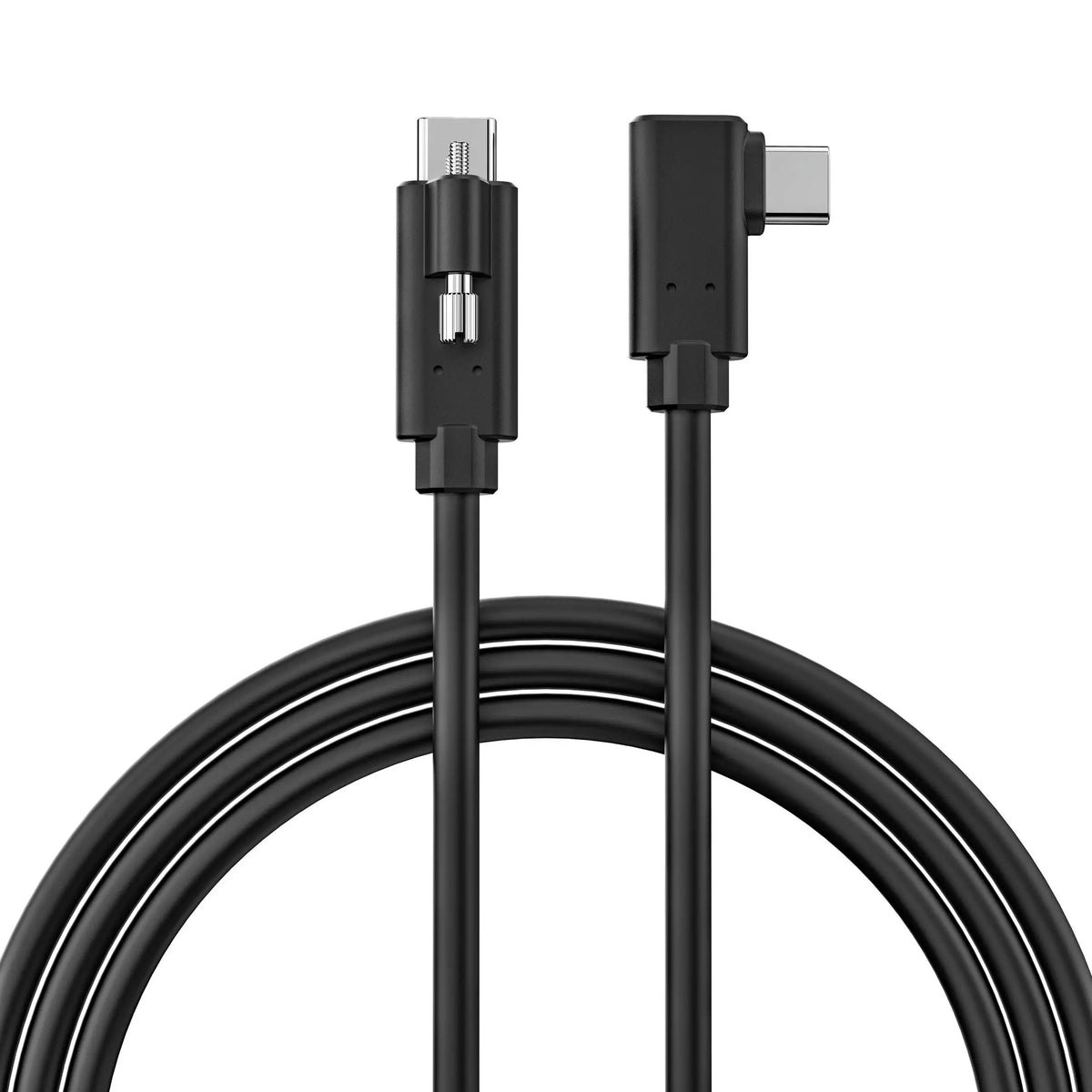

Optional 90° or Screw-Lock Connector

Different connector configurations are available for different installation requirements.

90° Right-Angle Design

Helps redirect the cable immediately after connection, reducing connector-side cable bending and improving routing in confined spaces.

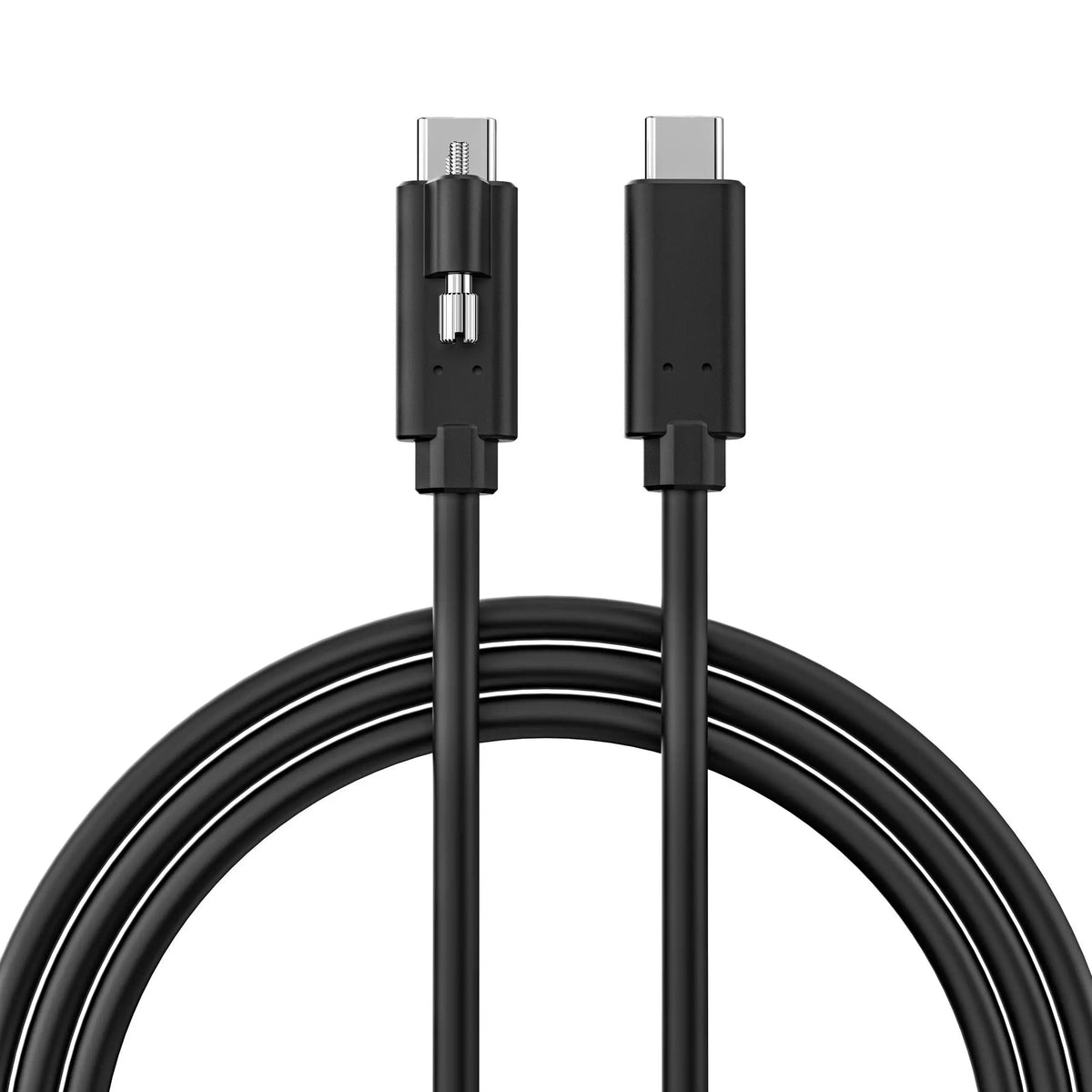

Screw-Lock Design

Provides a more secure mechanical connection for equipment that requires additional connector retention.

These options are particularly useful for industrial equipment, cameras, VR/AR systems, and fixed professional installations.

Ultra-Slim OD <5mm Construction

With an outer diameter of less than 5.0mm, the cable combines long-distance optical transmission with a slim and lightweight form factor.

The reduced cable profile makes it easier to route through:

  • Cable trays

  • Equipment racks

  • Desk systems

  • VR/AR setups

  • Camera rigs

  • Conference room installations

  • Space-constrained equipment

Plug-and-Play & Hot-Plug Support

Designed for straightforward installation without additional drivers.

The cable supports plug-and-play operation and hot-plug connectivity, helping simplify deployment across compatible USB 3.2 systems.

No separate external power supply is required for normal operation within the cable's specified power and system conditions.

Typical Applications

VR & AR Systems

The slim and lightweight design helps minimize cable bulk during VR/AR use while providing high-speed USB connectivity.

The 90° connector option can also help route the cable away from the headset or equipment enclosure.

USB-C Camera Systems

Suitable for USB-C cameras, conference cameras, and professional camera setups where the camera needs to be positioned away from the host computer.

The long optical connection helps extend the usable distance while maintaining high-speed USB connectivity.

High-Speed External Storage

Connect USB-C SSDs, HDDs, and other high-speed storage devices to workstations over extended distances.

The 10Gbps USB 3.2 Gen 2 interface is designed for high-bandwidth data transfer between compatible systems.

Conference & Professional AV Systems

Suitable for conference cameras, USB peripherals, workstation equipment, and professional AV installations where equipment may be separated by several meters.

Data Centers & Equipment Racks

The slim optical cable design can simplify cable routing in dense equipment environments while providing strong resistance to electromagnetic interference.

Industrial & EMI-Sensitive Environments

The fiber-based data transmission architecture provides strong EMI/RFI resistance for USB connections used around industrial equipment, motors, control systems, and dense electrical infrastructure.

Technical Specifications

Specification Details
Product Type USB 3.2 Gen 2 Active Optical Cable
Connector USB-C Male to USB-C Male
Data Rate Up to 10Gbps
Transmission Technology Hybrid Fiber + Copper
Maximum Length 10m
Standard Lengths 0.2m–10m
Custom Length Available
Power Delivery Up to 60W
Data Transmission Bi-Directional
Optical Technology 850nm VCSEL + PIN Photodetector
Cable Diameter OD <5.0mm
Connector Options Straight / 90° Right-Angle / Screw-Lock
Hot Plug Supported
Plug & Play Supported
External Power Not Required for Normal Operation
USB Compatibility USB 3.2 Gen 2
USB4 Not Supported
Thunderbolt™ Not Supported
Typical Applications VR/AR, Cameras, Storage, Conference Systems, Data Centers, Professional USB

Built for Long-Distance USB-C Connectivity

Traditional passive USB-C cables become increasingly challenging to deploy as cable length increases, particularly when high-speed USB data transmission is required.

This Active Optical Cable moves high-speed signal transmission into an optical path while retaining copper conductors for power delivery.

The result is a slim long-distance USB-C cable designed to provide:

10Gbps Data + Up to 60W PD + Bi-Directional Transmission + EMI Resistance

in a single USB-C connection.

Professional Integration Advantages

  • 10Gbps USB 3.2 Gen 2 for high-speed data transfer

  • Up to 60W PD for compatible USB-C devices

  • Up to 10m transmission distance

  • Bi-directional data transmission

  • 850nm VCSEL + PIN optical technology

  • Hybrid fiber + copper architecture

  • Strong EMI/RFI resistance

  • OD <5mm ultra-slim construction

  • 90° right-angle or screw-lock options

  • Plug-and-play and hot-plug support

  • Custom lengths available

  • Suitable for OEM, industrial, professional AV, VR/AR, camera, storage, and data center applications

Compatibility Note

This cable is designed for USB 3.2 Gen 2 applications and supports data rates up to 10Gbps when used with compatible host and peripheral hardware.

It is not compatible with USB4 or Thunderbolt™. Actual data transfer speed and charging performance depend on the connected host, device, USB controller, and power-delivery implementation.
