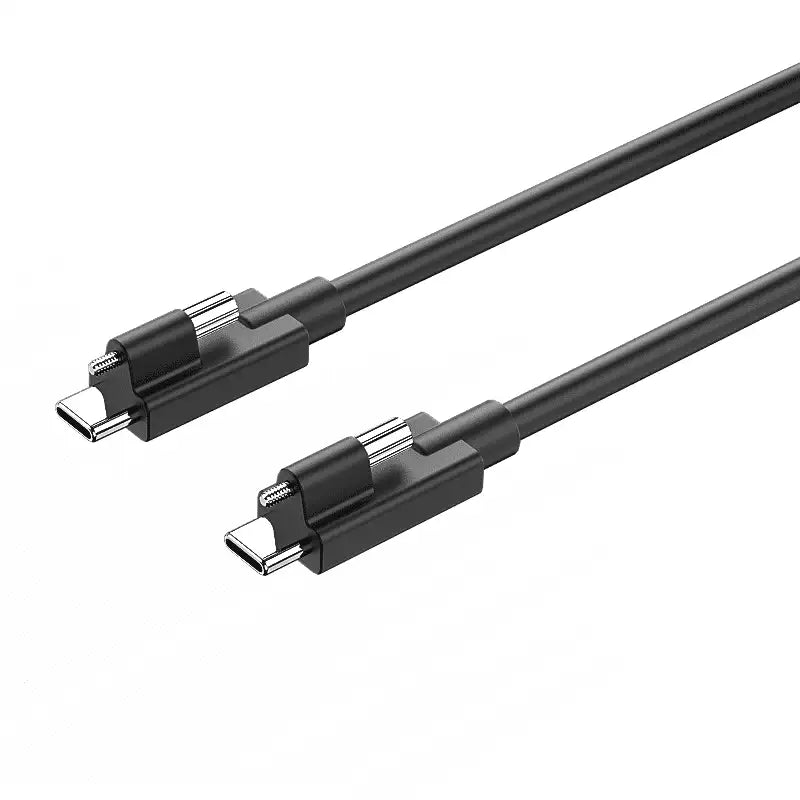

USB 3.2 Gen 2 USB-C to USB-C Active Optical Cable – 10Gbps, 60W with Screws

USB 3.2 Gen 2 USB-C to USB-C Active Optical Cable – 10Gbps, 60W with Screws

常规价格 $22.00 USD
常规价格 促销价 $22.00 USD
促销 售罄
已含税费。
数量


10Gbps Active Optical USB-C Connectivity for Long-Distance Applications

Designed to extend high-speed USB-C connectivity beyond the practical limits of conventional copper cables, this USB-C to USB-C Active Optical Cable supports USB 3.2 Gen 2 data transmission up to 10Gbps over cable lengths of up to 10 meters.

The hybrid fiber-and-copper architecture combines optical transmission for high-speed data with copper conductors for power delivery, providing stable long-distance connectivity with strong resistance to electromagnetic interference.

Featuring 850nm VCSEL laser and PIN photodetector technology, the cable provides a reliable optical transmission path for professional USB 3.2 applications.

With true bi-directional data transmission, up to 60W charging, hot-plug support, and no external power supply, it is designed for data centers, professional studios, VR/AR systems, cameras, storage devices, conference systems, and other high-speed USB installations.

Key Features

10Gbps USB 3.2 Gen 2 Performance

Supports USB 3.2 Gen 2 up to 10Gbps SuperSpeed for high-bandwidth data transmission.

The active optical architecture is designed to maintain reliable USB connectivity across extended cable lengths while reducing the signal attenuation typically associated with long copper connections.

Important: This product is designed for USB 3.2 Gen 2 applications and is not compatible with USB4 or Thunderbolt™.

Active Optical Hybrid Construction

The cable combines optical fiber and copper conductors to provide both high-speed data transmission and power delivery.

The optical data path helps provide strong resistance to electromagnetic interference, making the cable suitable for electrically noisy environments and high-density equipment installations.

Key optical components include:

  • 850nm VCSEL laser

  • PIN photodetector

  • Multimode optical transmission

  • Hybrid fiber-and-copper construction

True Bi-Directional Transmission

Unlike directional optical cables, this USB-C AOC supports bi-directional USB data transmission.

There is no required host-to-device orientation, allowing either USB-C connector to be connected to the compatible host or peripheral.

This provides greater flexibility for:

  • Camera connections

  • External storage

  • VR/AR equipment

  • Conference systems

  • Professional workstations

  • Data center equipment

Up to 60W Power Delivery

Supports charging and power delivery up to 60W for compatible USB-C systems.

The hybrid construction uses copper conductors to support power transmission while optical fiber handles high-speed USB data.

Actual charging power depends on the connected source, device, USB-C implementation, and power requirements of the system.

Right-Angle or Screw-Lock Connector Options

Available with different connector configurations to accommodate different installation requirements.

90° Right-Angle Design

Helps optimize cable routing in tight spaces and reduce bending near the USB-C port.

Screw-Lock Design

Provides a more secure physical connection for fixed installations and environments where accidental disconnection must be minimized.

Ultra-Slim Cable Design

With an outer diameter of less than 5.0mm, the cable is designed to remain lightweight and flexible despite its long-distance active optical architecture.

The slim profile is suitable for:

  • VR/AR systems

  • Camera tethering

  • Conference systems

  • Workstations

  • Rack installations

  • Tight cable-management environments

No External Power Supply

The cable is designed for bus-powered operation, eliminating the need for a separate external power adapter for normal USB operation within its specified capabilities.

This simplifies deployment and reduces the number of components required for long-distance USB connections.

Plug & Play with Hot-Plug Support

Designed for direct connection without additional drivers or software.

Plug → Connect → Use

Hot-plug functionality allows compatible USB devices to be connected and disconnected without requiring the entire system to be powered down.

Professional Applications

VR & AR Systems

The lightweight and flexible construction is suitable for VR/AR applications where users or equipment may move during operation.

The optical architecture allows the computer and headset to be positioned farther apart without relying on a long, heavy copper USB cable.

Camera Tethering

Designed for connecting compatible USB cameras to computers or recording systems over extended distances.

Suitable for:

  • Professional cameras

  • Conference cameras

  • Studio cameras

  • Industrial cameras

  • Video capture systems

External Storage

Provides up to 10Gbps USB connectivity for compatible high-speed storage devices and external HDD/SSD systems.

Suitable for long-distance workstation and studio configurations where the storage device cannot be positioned directly beside the computer.

Professional Studios

Useful for studio environments requiring flexible USB-C connectivity between cameras, computers, storage equipment, and other peripherals.

Conference Systems

Suitable for connecting cameras and other USB peripherals to conference-room computers located farther away from the display or camera position.

Data Centers

Designed for USB 3.2 applications in server rooms, equipment racks, management systems, and other high-density infrastructure.

Technical Specifications

Specification Details
Product Type USB-C to USB-C Active Optical Cable
Connector USB-C Male to USB-C Male
USB Standard USB 3.2 Gen 2
Maximum Data Rate Up to 10Gbps
Transmission Type Active Optical
Cable Structure Hybrid Fiber + Copper
Optical Component 850nm VCSEL + PIN Photodetector
Maximum Length Up to 10m
Standard Lengths 0.2–10m
Power Delivery Up to 60W
Transmission Direction Bi-Directional
Connector Options Straight / 90° Right-Angle / Screw-Lock
Cable Diameter OD < 5.0mm
External Power Not Required for Normal Operation
Hot-Plug Supported
Driver Plug & Play
Connector Plating Gold-Plated
Shielding Double-Layer Shielding
USB4 Compatibility Not Supported
Thunderbolt Compatibility Not Supported

Designed for Long-Distance USB 3.2 Connectivity

The main advantage of an active optical USB-C cable is its ability to extend high-speed USB connectivity beyond the practical distance limitations of conventional copper cables.

This design combines:

10Gbps USB + Optical Data Transmission + 60W Power + Bi-Directional Operation + Slim Construction

The result is a long-distance USB-C connection that remains lightweight and flexible while providing strong resistance to electromagnetic interference.

For applications such as VR, professional cameras, studios, conference systems, and data centers, this allows equipment to be physically separated without requiring additional USB hubs or signal-extender equipment.

Installation & Compatibility Notes

  • This cable supports USB 3.2 Gen 2 up to 10Gbps.

  • It is not compatible with USB4.

  • It is not compatible with Thunderbolt™.

  • Actual data rate depends on the USB controller, host, peripheral, and system configuration.

  • Up to 60W power delivery requires compatible USB-C power source and device implementations.

  • No external power supply is required for normal operation within the cable's specified capabilities.

  • For optimal performance, avoid excessive bending, pulling, or crushing of the cable.

  • Custom lengths are available for professional and OEM projects.

B2B & Project Applications

Ideal for:

  • Data center infrastructure

  • Professional studios

  • VR/AR systems

  • Camera tethering

  • Conference systems

  • External storage

  • Industrial cameras

  • Professional workstations

  • High-speed HDD/SSD systems

  • USB 3.2 equipment

  • Fixed equipment installations

  • OEM and custom projects

Custom lengths and connector configurations are available for specialized applications.
