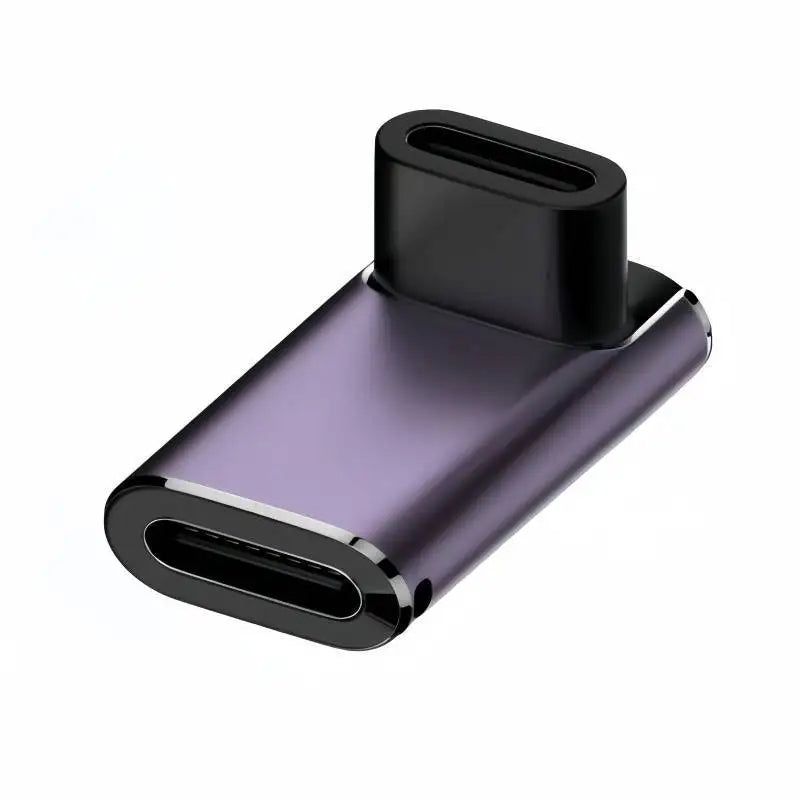

USB4 Type-C Female to Female Vertical-Angle Adapter – 40Gbps, 240W PD, 8K@60Hz

USB4 Type-C Female to Female Vertical-Angle Adapter – 40Gbps, 240W PD, 8K@60Hz

常规价格 $40.00 USD
常规价格 促销价 $40.00 USD
促销 售罄
已含税费。
数量


Designed for high-performance USB-C cable extension and space-constrained installations, this USB4 Type-C female-to-female vertical-angle adapter supports up to 40Gbps data transfer, 240W Power Delivery, and high-resolution video output up to 8K@60Hz.

With USB-C female connectors on both ends, the adapter allows two compatible USB-C cables to be connected while the vertical-angle structure redirects the cable path. This provides a practical solution for installations where a straight inline connection would require excessive clearance or create unwanted cable bends.

The compact aluminum alloy housing provides durable mechanical protection and helps dissipate heat, while the built-in LED indicator offers a convenient visual reference when power is present.

Key Features

  • 40Gbps USB4 Data Transfer – Supports up to 40Gbps bandwidth for compatible USB4 storage, docking stations, peripherals, and professional workflows.

  • 240W USB-C Power Delivery – Supports up to 240W PD with a 48V/5A power profile when paired with compatible USB PD 3.1 equipment.

  • 8K@60Hz Video Output – Designed to support high-resolution video applications, including up to 8K@60Hz and 4K@120Hz, depending on the connected system.

  • Female-to-Female USB-C Interface – Connects two compatible USB-C male cables through a single compact adapter.

  • Vertical-Angle Connection – Changes the cable direction to support vertical routing and improve clearance in compact installations.

  • USB-C Cable Extension – Provides a convenient way to join compatible USB-C cables while changing their routing direction.

  • Space-Saving Design – Helps reduce cable protrusion and avoid unnecessary bends around USB-C ports and equipment.

  • Aluminum Alloy Housing – Durable metal construction provides mechanical protection and helps dissipate heat.

  • Built-in LED Indicator – Provides a convenient visual indication when power is present.

Professional Applications

USB-C Cable Extension

Connect two compatible USB-C cables while redirecting the connection vertically, providing additional installation flexibility compared with a straight coupler.

USB4 Docking Systems

Useful for extending USB4 connections between laptops, docking stations, hubs, and high-speed peripherals in compact workspaces.

Monitor & Display Installations

Helps route USB-C display cables vertically behind monitors or other display equipment where conventional straight connections may require additional clearance.

External Storage

Suitable for compatible USB4 SSDs and high-speed storage systems where cable routing and bandwidth are both important.

Professional Workstations

Designed for engineering, content creation, development, design, and other workstation environments using high-performance USB-C connections.

Equipment Integration

Useful for OEM integration, equipment testing, desktop systems, and other installations where USB-C cable extension and directional routing are required.

Technical Specifications

Specification Details
Product Type USB4 Type-C Female-to-Female Vertical-Angle Adapter
Connector 1 USB-C Female
Connector 2 USB-C Female
USB Standard USB4
Data Transfer Rate Up to 40Gbps
Power Delivery Up to 240W
PD Profile Up to 48V/5A
Video Output Up to 8K@60Hz / 4K@120Hz
Connection Type Female-to-Female
Design Vertical-Angle
Indicator Built-in LED
Housing Aluminum Alloy
Application Cable Extension, Dock, SSD, Display, Laptop, Workstation

Female-to-Female Connection with Vertical Cable Routing

A standard female-to-female USB-C coupler provides a straight connection between two cables. However, straight connections are not always practical when equipment is installed close to a wall, panel, monitor stand, or other obstruction.

This adapter combines female-to-female connectivity with a vertical-angle structure, allowing two compatible USB-C cables to be connected while redirecting the cable path.

It can help:

  • Extend existing USB-C cables

  • Change the cable routing direction

  • Reduce cable protrusion

  • Improve clearance around equipment

  • Avoid unnecessary sharp cable bends

  • Create cleaner installations in confined spaces

Built for High-Bandwidth USB-C Systems

The adapter combines a compact vertical-angle structure with support for USB4 up to 40Gbps, up to 240W Power Delivery, and high-resolution video applications.

The aluminum alloy housing provides a durable enclosure for repeated-use environments, while the LED indicator makes power presence easier to identify during installation and troubleshooting.

Important Compatibility Note

Actual performance depends on the connected devices, cables, USB-C ports, and supported protocols.

  • 40Gbps requires compatible USB4 host, device, and cable hardware.

  • 240W charging requires compatible USB PD 3.1 source/device equipment and a suitable 240W-rated cable.

  • 8K@60Hz / 4K@120Hz requires compatible video-capable USB-C ports, display devices, cables, and supported video protocols.

  • Not every USB-C port or cable supports USB4, 40Gbps data transfer, high-power PD, or video output.

  • The adapter does not increase the capabilities of the connected USB-C cables or devices.
