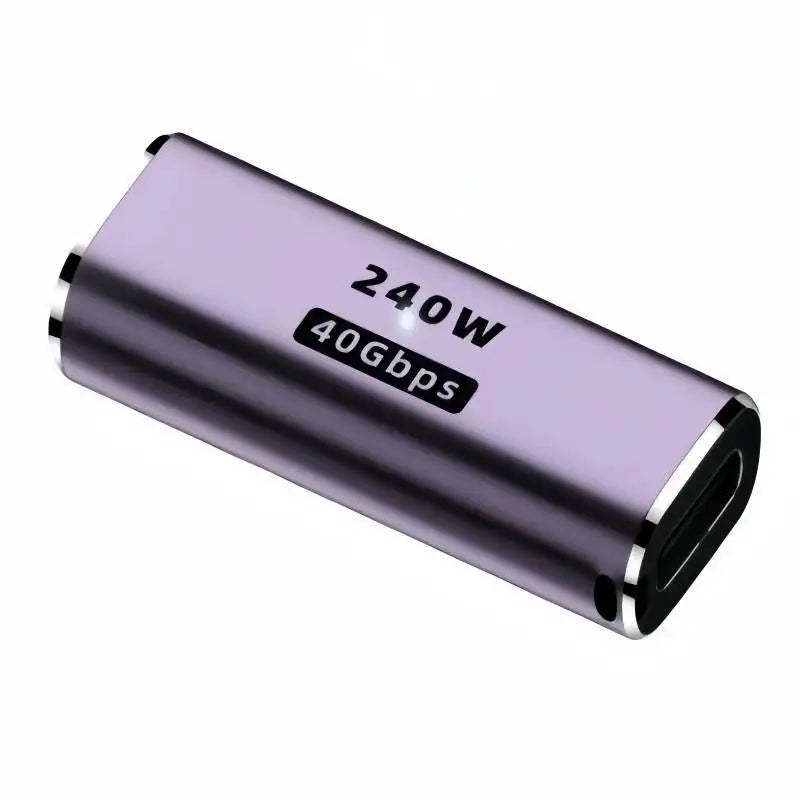

USB4 Type-C Female to Female Straight Adapter – 40Gbps, 240W PD, 8K@60Hz

USB4 Type-C Female to Female Straight Adapter – 40Gbps, 240W PD, 8K@60Hz

常规价格 $40.00 USD
常规价格 促销价 $40.00 USD
促销 售罄
已含税费。
数量


Designed for high-performance USB-C connectivity and cable extension, this USB4 Type-C female-to-female straight adapter supports up to 40Gbps data transfer, 240W Power Delivery, and high-resolution video output up to 8K@60Hz.

With USB-C female connectors on both ends, the adapter provides a straightforward way to connect two compatible USB-C cables in a single inline connection. Its straight-through structure maintains a clean cable path, making it suitable for extending existing USB-C connections in laptops, docking stations, external storage systems, workstations, and other USB-C installations.

A durable aluminum alloy housing provides mechanical protection and helps dissipate heat, while the built-in LED indicator offers a convenient visual reference when power is present.

Key Features

  • 40Gbps USB4 Data Transfer – Supports up to 40Gbps bandwidth for compatible USB4 storage, docking stations, peripherals, and professional workflows.

  • 240W USB-C Power Delivery – Supports up to 240W PD with a 48V/5A power profile when paired with compatible USB PD 3.1 equipment.

  • 8K@60Hz Video Output – Designed to support high-resolution video applications, including up to 8K@60Hz and 4K@120Hz, depending on the connected system.

  • Female-to-Female USB-C Interface – Connects two compatible USB-C male cables through a single compact adapter.

  • Straight-Through Connection – Maintains a direct inline cable path without changing the cable direction.

  • Cable Extension Solution – Provides a practical way to extend compatible USB-C connections using existing cables.

  • Aluminum Alloy Housing – Durable metal construction provides mechanical protection and helps dissipate heat.

  • Built-in LED Indicator – Provides a convenient visual indication when power is present.

  • Compact Form Factor – Suitable for desktop, mobile, and professional USB-C installations.

Professional Applications

USB-C Cable Extension

Connect two compatible USB-C cables to create a longer connection where the original cable length is insufficient.

USB4 Docking Systems

Useful for extending connections between USB4 laptops, docking stations, hubs, and high-speed peripherals.

External Storage

Suitable for compatible USB4 SSDs and other high-performance storage systems where maintaining high bandwidth is important.

Professional Workstations

Designed for engineering, content creation, development, design, and other workstation environments using USB-C connectivity.

USB-C Displays

Can be used in compatible USB-C video configurations where additional cable length is required.

System Integration

Suitable for OEM, system integration, equipment testing, and other applications requiring a compact female-to-female USB-C connection.

Technical Specifications

Specification Details
Product Type USB4 Type-C Female-to-Female Straight Adapter
Connector 1 USB-C Female
Connector 2 USB-C Female
USB Standard USB4
Data Transfer Rate Up to 40Gbps
Power Delivery Up to 240W
PD Profile Up to 48V/5A
Video Output Up to 8K@60Hz / 4K@120Hz
Connection Type Straight-Through / Inline
Indicator Built-in LED
Housing Aluminum Alloy
Application Cable Extension, Laptop, Dock, SSD, Display, Workstation

Straight-Through Design for USB-C Cable Extension

When an existing USB-C cable does not provide enough length, replacing the entire cable is not always necessary.

This female-to-female USB4 adapter allows two compatible USB-C cables to be joined through a compact inline connection. The straight-through structure maintains the original cable direction without introducing a 90-degree bend.

This makes it useful for:

  • Extending existing USB-C cables

  • Connecting USB4-compatible equipment

  • Repositioning equipment within a workstation

  • Connecting devices in larger desktop setups

  • OEM and system integration applications

Built for High-Bandwidth USB-C Connectivity

The adapter combines a compact female-to-female structure with support for USB4 up to 40Gbps, up to 240W Power Delivery, and high-resolution video applications.

The aluminum alloy enclosure provides a durable housing for professional and repeated-use environments, while the LED indicator makes power presence easier to identify during installation and troubleshooting.

Important Compatibility Note

Actual performance depends on the connected devices, cables, USB-C ports, and supported protocols.

  • 40Gbps requires compatible USB4 host, device, and cable hardware.

  • 240W charging requires compatible USB PD 3.1 source/device equipment and a suitable 240W-rated cable.

  • 8K@60Hz / 4K@120Hz requires compatible video-capable USB-C ports, display devices, cables, and supported video protocols.

  • Not every USB-C port or cable supports USB4, 40Gbps data transfer, high-power PD, or video output.

  • Connecting two USB-C cables through an adapter does not increase the capabilities of either cable or connected device.
